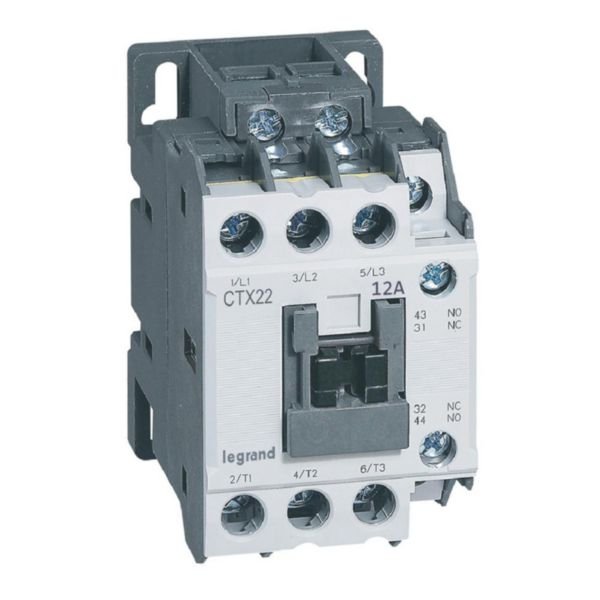

3-Pole Contactor 12A AC-3 Rating | Screw Terminals | Mirror Contact NC | @EA of 1 | by Legrand
The 3-pole contactor with a 12A AC-3 rating is perfect for controlling 3-phase motors up to 5.5 kW. Designed with screw terminals and a mirror contact NC, it ensures reliable operation in industrial and tertiary electrical installations. With an endurance of up to 15 million mechanical operations, this contactor is built for longevity and efficiency, making it an ideal choice for motor control and protection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 12A AC-3 Rating | Screw Terminals | Mirror Contact NC | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416096
Alternatively Known As: 3-pole motor contactor, 12A contactor, Legrand CTX3 contactor, industrial motor starter, screw terminal contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Voltage type for actuating: AC
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Rated operation power at AC-3, 400 V: 5.5 kW
- Rated operation current Ie at AC-4, 400 V: 9 A
- Rated operation power at AC-4, 400 V: 4 kW
- Number of auxiliary contacts NO: 1
- Number of auxiliary contacts NC: 1
- Type of electrical connection of main circuit: Cable clamp
- Endurance: up to 15 million mechanical operations and 2.5 million electrical operations
- Operation cycles (AC-3) per hour: 1800
- Dimensions (H x L x W): 70mm x 65mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor with 12A AC-3 rating for 3-phase motors up to 5.5 kW
- Rated operation current 25A at AC-1 and 12A at AC-3
- 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts
- NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
- Screw terminals for power (2 x 1mm² to 6mm²), coil (0.75mm² to 2.5mm²), and auxiliary circuits
- Compact size for optimized cabinet space
- Coil supply can be connected on top or bottom side
- Endurance up to 15 million mechanical and 2.5 million electrical operations
- Number of operation cycles (AC-3) per hour: 1800
- Compatible with all Legrand CTX3 auxiliaries and accessories
- Designed with environmentally conscious process and substance-restriction compliance
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper operation.
Applications
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 5.5 kW (415V)
- Use in motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with substance-restriction compliance to reduce hazardous materials
- Manufactured using environmentally conscious processes
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand's official warranty policy for details.
Available Now
The Legrand CTX³ 3-pole contactor 12A AC-3 rating with screw terminals and mirror contact NC is available for immediate purchase. Ideal for industrial and tertiary motor control applications.
