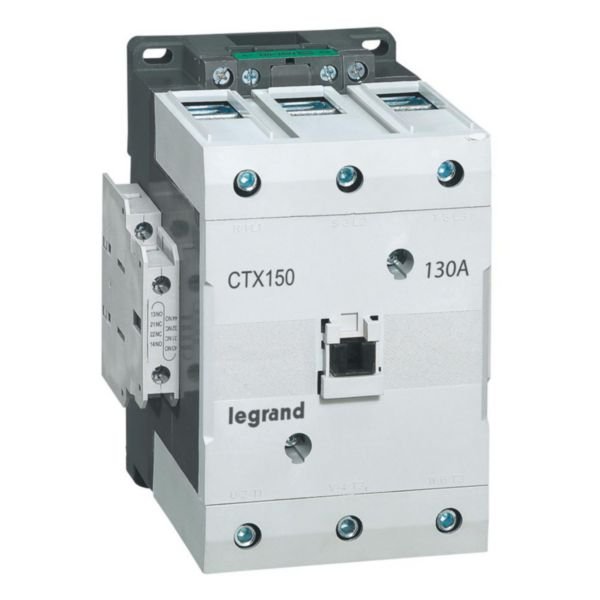

3-Pole Contactor 130A AC-3 Rating | Modular Version | Screw Connection | @Each of 1 | by Legrand
The 3-pole contactor with a 130A AC-3 rating is perfect for industrial motor control and protection. Designed for switching 3-phase motors up to 60 kW at 415V, it features 2 normally open and 2 normally closed auxiliary contacts. Built for reliability, this modular version ensures easy installation and compliance with electrical standards, making it ideal for both industrial and tertiary applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 130A AC-3 Rating | Modular Version | Screw Connection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416256
Alternatively Known As: Legrand CTX3 Contactor, 3 Pole Motor Contactor, 130A Motor Contactor, Modular Contactor Screw Connection
Technical Specifications
- Rated control supply voltage AC 50 Hz: 85-264 V
- Rated control supply voltage AC 60 Hz: 85-264 V
- Rated control supply voltage DC: 85-242 V
- Voltage type for actuating: AC/DC
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-3, 400 V: 130 A
- Rated operation power at AC-3, 400 V: 60 kW
- Rated operation current Ie at AC-4, 400 V: 90 A
- Rated operation power at AC-4, 400 V: 45 kW
- Number of auxiliary contacts normally open: 2
- Number of auxiliary contacts normally closed: 2
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board installation
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole contactor with 130A AC-3 rating and 160A AC-1 rating
- Suitable for switching 3-phase motors up to 60 kW at 415V
- Equipped with 2NO + 2NC auxiliary contacts, factory assembled
- Coil supply possible on top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Endurance up to 5 million mechanical and 1 million electrical operations
- Number of operation cycles (AC-3) per hour: 1200
- Cage terminals capacity: Power 2 x 35mm² to 95mm², Coil 0.75mm² to 2.5mm², Aux circuit 0.75mm² to 2.5mm²
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.
Available Now
The Legrand CTX³ 3-pole contactor 130A AC-3 rating modular version with screw connection is available for immediate purchase, ideal for industrial and tertiary motor control applications.
