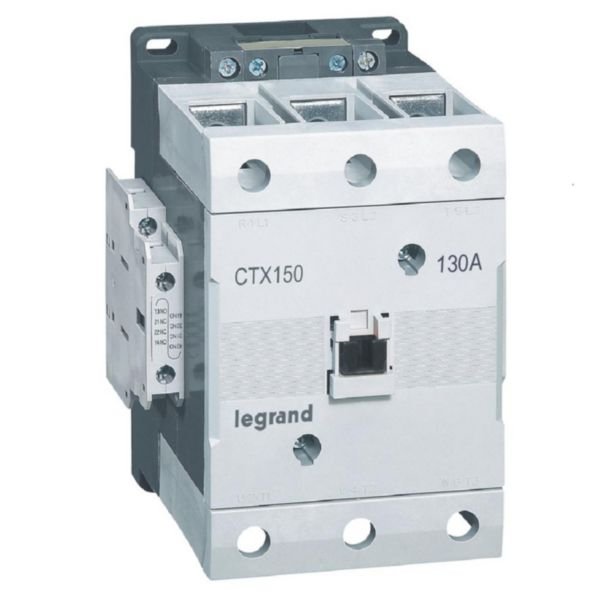

3-Pole Contactor 130A AC-3 Rating | Screw Terminals | DC Voltage Actuation | @Each of 1 | by Legrand
The 3-pole contactor with a 130A AC-3 rating is engineered for reliable industrial motor control and protection. Featuring screw terminals for easy installation and DC voltage actuation, this contactor is perfect for switching inductive and non-inductive loads. With a robust design that ensures up to 5 million mechanical operations, it’s ideal for both tertiary and industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 130A AC-3 Rating | Screw Terminals | DC Voltage Actuation | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416241
Alternatively Known As: 3-pole motor contactor, 130A contactor, DC coil contactor, Legrand motor starter
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Voltage type for actuating: DC
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-3, 400 V: 130 A
- Rated operation power at AC-3, 400 V: 60 kW
- Rated operation current Ie at AC-4, 400 V: 90 A
- Rated operation power at AC-4, 400 V: 45 kW
- Number of auxiliary contacts normally open: 2
- Number of auxiliary contacts normally closed: 2
- Type of electrical connection of main circuit: Cable clamp
- Suitable for distribution board installation
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole contactor with 130A AC-3 rating for 3-phase motors up to 60 kW (415V)
- 2NO + 2NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
- Screw terminals for power (2 x 35mm² to 70mm²), coil and auxiliary circuits
- Endurance up to 5 million mechanical and 1 million electrical operations
- 1200 operation cycles per hour (AC-3)
- Modular design with removable front cover for visual inspection
- Coil supply possible from top or bottom side
- Engineered for easy coil replacement
- Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured through an environmentally conscious process
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 130A AC-3 rating with DC voltage actuation is available for immediate purchase, ideal for industrial motor control and protection applications.
