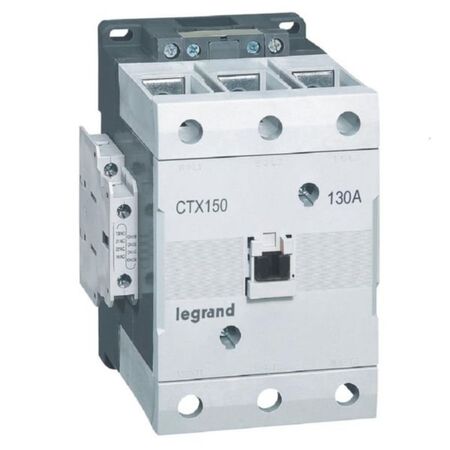

3-Pole Contactor 130A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
The 3-pole contactor with a 130A AC-3 rating is perfect for industrial motor control and protection. Designed for switching 3-phase motors up to 60 kW at 415V, it features 2 normally open and 2 normally closed auxiliary contacts, ensuring reliable operation. With a modular design and screw terminals for easy installation, this contactor is built to endure up to 5 million mechanical operations, making it ideal for both industrial and tertiary electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 130 A
- Rated operation power at AC-3, 400 V: 60 kW
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-4, 400 V: 90 A
- Rated operation power at AC-4, 400 V: 45 kW
- Rated control supply voltage AC 50/60 Hz: 340-484 V
- Number of normally open main contacts: 3
- Number of normally closed auxiliary contacts: 2
- Number of normally open auxiliary contacts: 2
- Type of electrical connection: Cable clamp
- Number of mechanical operations: up to 5 million
- Number of electrical operations: up to 1 million
- Operation cycles per hour (AC-3): 1200
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole contactor with 130A AC-3 rating for switching 3-phase motors up to 60 kW at 415V
- Equipped with 2NO + 2NC auxiliary contacts, factory assembled
- Screw terminals for power (2 x 35mm² to 70mm²), coil and auxiliary circuits
- Endurance up to 5 million mechanical and 1 million electrical operations
- Coil supply possible on top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Modular design, plate-mountable
- Complies with IEC 60947-4-1 standard
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper operation.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand CTX³ 3-pole contactor 130A AC-3 rating modular version is available for immediate purchase, ideal for industrial and tertiary motor control applications.
