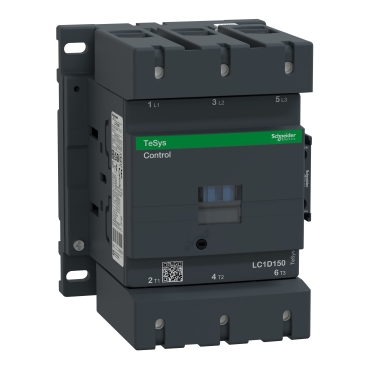

3 Pole Contactor 150A 230V AC | Heavy-Duty Design | High Endurance | by Clipsal
The 3 Pole Contactor 150A 230V AC is designed for reliable switching in industrial motor control and automation applications. With a robust design and high electrical and mechanical endurance, it efficiently manages both resistive and inductive loads. Ideal for commercial lighting and HVAC systems, this contactor ensures safe and efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Contactor 150A 230V AC | Heavy-Duty Design | High Endurance | by Clipsal
Brand: Clipsal
SKU: SCHLC1D150P7
Alternatively Known As: 3 Pole Contactor, 150A Contactor, 230V AC Contactor, Clipsal LC1D150P7, Industrial Contactor
Technical Specifications
- Number of Poles: 3 (3 NO)
- Rated Operational Current: 150A
- Coil Voltage: 230V AC 50/60Hz
- Utilization Category: AC-3
- Conventional Thermal Current: 250A
- Electrical Endurance: 1 million operations
- Mechanical Endurance: 10 million operations
- Mounting: DIN rail or panel
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 160mm x 140mm x 120mm
- Weight: 2.5 kg
Key Features
- 3 pole (3 NO) contactor for reliable switching
- Rated operational current: 150A
- Coil voltage: 230V AC
- Robust design for heavy-duty applications
- Suitable for both resistive and inductive loads
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor control
- Lighting control in commercial buildings
- HVAC systems
- Switching of resistive and inductive loads
- Automation panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management in automation systems
- Supports safe and reliable switching to reduce energy waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 3P (3 NO) 150A 230V AC Contactor SCHLC1D150P7 is available for immediate purchase. Ideal for industrial and commercial motor control and automation applications.
