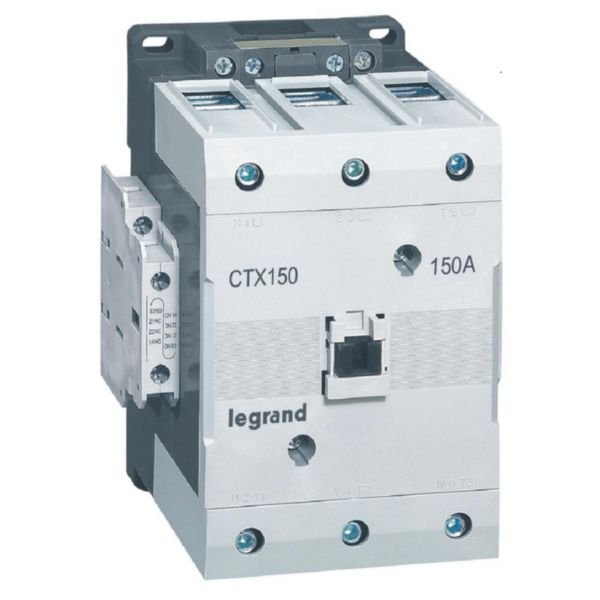

3-Pole Contactor 150A AC-3 Rating | Modular Screw Connection | Mirror Contact NC | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416270
$1,130.10 List price: $1,408.30
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 150A AC-3 rating is perfect for industrial motor control applications. Designed for switching 3-phase motors up to 75 kW at 415V, it features a modular screw connection and mirror contact NC for enhanced reliability. Ideal for both inductive and non-inductive loads, this contactor ensures compliance with electrical safety standards and offers an endurance of up to 5 million mechanical operations.

Product Name/Title: 3-Pole Contactor 150A AC-3 Rating | Modular Screw Connection | Mirror Contact NC | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416270

Alternatively Known As: 3-pole motor contactor, 150A motor contactor, Legrand CTX3 contactor, industrial motor switch, modular screw contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 150 A
  • Rated operation power at AC-3, 400 V: 75 kW
  • Rated operation current Ie at AC-1, 400 V: 210 A
  • Rated operation current Ie at AC-4, 400 V: 110 A
  • Rated operation power at AC-4, 400 V: 55 kW
  • Number of poles: 3
  • Auxiliary contacts: 2 normally open (NO) + 2 normally closed (NC)
  • Control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Electrical connection type: Modular screw connection
  • Endurance: 5 million mechanical operations, 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1200
  • Dimensions (H x L x W): 90mm x 75mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 3-pole contactor with 150A AC-3 rating
  • Switching capacity for 3-phase motors up to 75 kW at 415V
  • 2NO + 2NC auxiliary contacts with mirror contact NC according to IEC 60947-4-1
  • Modular screw connection with cage terminals supporting 2 x 35mm² to 95mm² power cables
  • Endurance of up to 5 million mechanical and 1 million electrical operations
  • Coil supply possible on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Number of operation cycles (AC-3) per hour: 1200
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 75 kW at 415V
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
  • Designed with substance-restriction compliance to reduce hazardous materials
  • Manufactured through an environmentally conscious process
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

Legrand CTX³ 3-pole contactor 150A AC-3 rating is available for immediate purchase, ideal for industrial and tertiary motor control applications.
