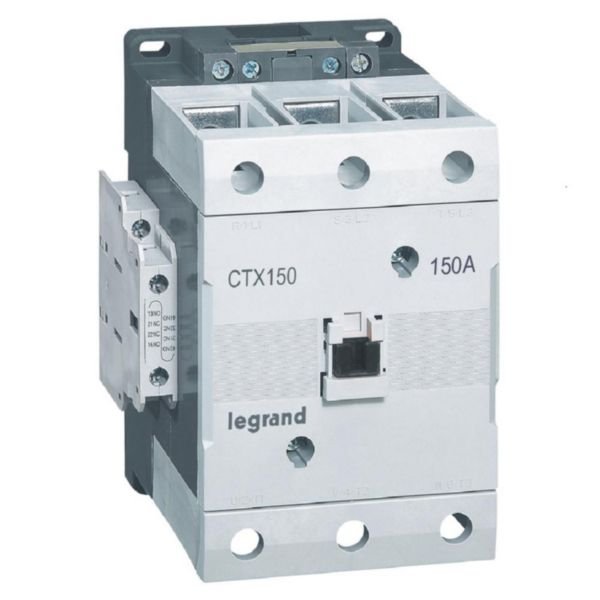

3-Pole Contactor 150A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Voltage Actuation | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416261
$1,141.80 List price: $1,422.90
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 150A AC-3 rating is perfect for controlling 3-phase motors up to 75 kW. Featuring 2 normally open and 2 normally closed auxiliary contacts, this contactor operates on DC voltage (20.4-26.4 V DC) and is designed for industrial motor control and protection. Built for durability, it ensures reliable performance with an endurance of up to 5 million mechanical operations, making it ideal for demanding applications.

Product Name/Title: 3-Pole Contactor 150A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Voltage Actuation | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416261

Alternatively Known As: 3-pole motor contactor, DC coil contactor, Legrand CTX3 contactor, industrial motor starter contactor

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Voltage type for actuating: DC
  • Number of main contacts (NO): 3
  • Number of main contacts (NC): 0
  • Rated operation current Ie at AC-1, 400 V: 210 A
  • Rated operation current Ie at AC-3, 400 V: 150 A
  • Rated operation power at AC-3, 400 V: 75 kW
  • Rated operation current Ie at AC-4, 400 V: 110 A
  • Rated operation power at AC-4, 400 V: 55 kW
  • Number of auxiliary contacts (NO): 2
  • Number of auxiliary contacts (NC): 2
  • Type of electrical connection of main circuit: Cable clamp
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 90mm x 75mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 3-pole contactor with 150A AC-3 rating for 3-phase motors up to 75 kW (415V)
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • DC coil voltage actuation (20.4-26.4 V DC)
  • Screw terminals for power (2 x 35mm² to 95mm²) and coil/auxiliary circuits (0.75mm² to 2.5mm²)
  • Endurance of up to 5 million mechanical and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1200
  • Removable front cover for visual inspection of arc chambers and contacts
  • Coil supply possible from top or bottom side
  • Complies with IEC 60947-4-1 standard for mirror contacts
  • Modular design compatible with all Legrand CTX3 auxiliaries and accessories
Professional Installation Requirements
  • Installation by a qualified electrician is required. Follow all safety instructions and use only Legrand branded accessories for optimal performance and compliance.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 75 kW
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process complying with substance-restriction requirements
  • Long operational life reduces waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
