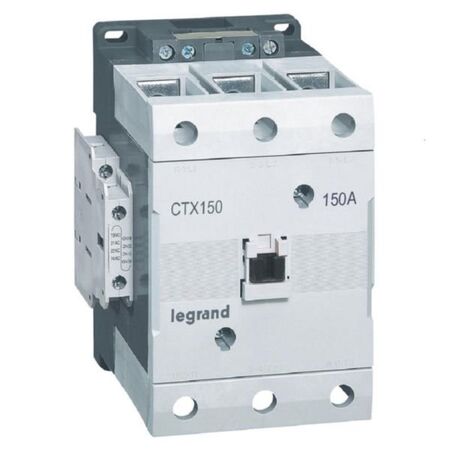

3-Pole Contactor 150A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416266
$1,077.50 List price: $1,342.80
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 150A AC-3 rating is perfect for industrial motor control and protection. Designed for switching 3-phase motors up to 75 kW, it features screw terminals for easy installation and is equipped with 2 normally open and 2 normally closed auxiliary contacts. Built for durability, it ensures long-lasting performance with up to 5 million mechanical operations, making it ideal for both industrial and tertiary electrical installations.

Product Name/Title: 3-Pole Contactor 150A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416266

Alternatively Known As: 3-pole motor contactor, 150A motor contactor, Legrand CTX3 contactor, industrial contactor, modular contactor

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 85-264 V
  • Rated control supply voltage AC 60 Hz: 85-264 V
  • Rated control supply voltage DC: 85-242 V
  • Voltage type for actuating: AC/DC
  • Number of normally closed contacts as main contact: 0
  • Number of normally open contacts as main contact: 3
  • Type of electrical connection of main circuit: Cable clamp
  • Rated operation current Ie at AC-1, 400 V: 210 A
  • Rated operation current Ie at AC-3, 400 V: 150 A
  • Rated operation power at AC-3, 400 V: 75 kW
  • Rated operation current Ie at AC-4, 400 V: 110 A
  • Rated operation power at AC-4, 400 V: 55 kW
  • Number of auxiliary contacts as normally open contact: 2
  • Number of auxiliary contacts as normally closed contact: 2
  • Suitable for distribution board: Yes
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 3-pole contactor with 150A AC-3 rating for switching 3-phase motors up to 75 kW (415V).
  • Rated operation current of 210A at AC-1 and 150A at AC-3.
  • Equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
  • Screw terminals for power (2 x 35mm² to 95mm²), coil (0.75mm² to 2.5mm²), and auxiliary circuits.
  • Endurance of up to 5 million mechanical operations and 1 million electrical operations.
  • Number of operation cycles (AC-3) per hour: 1200.
  • Coil supply can be connected on top or bottom side.
  • Removable front cover for visual inspection of arc chambers and contacts.
  • Complies with IEC 60947-4-1 standard.
  • Designed with environmentally conscious processes.
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and safety regulations.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance and environmentally conscious manufacturing processes.
  • Long mechanical and electrical endurance reduces replacement frequency and waste.
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

Legrand CTX³ 3-pole contactor 150A AC-3 rating is available for immediate purchase, ideal for industrial and tertiary motor control applications.
