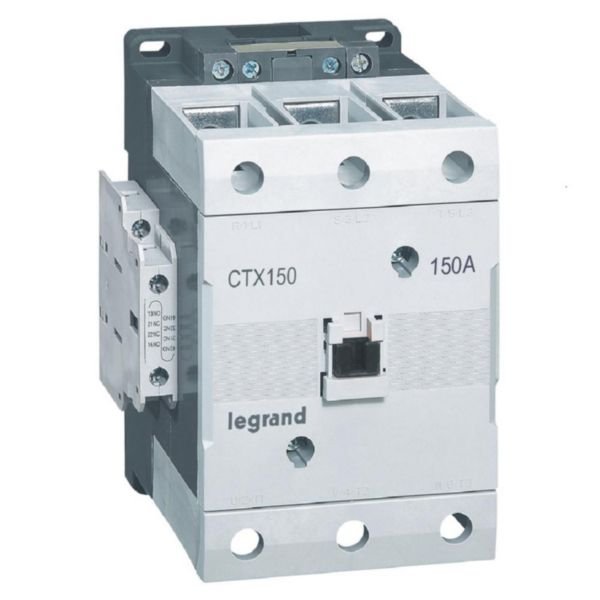

3-Pole Contactor 150A AC-3 Rating | Screw Terminals 95mm² | Modular Version | @Each of 1 | by Legrand
The 3-pole contactor with a 150A AC-3 rating is perfect for industrial motor control and protection. Designed for switching 3-phase motors up to 75 kW at 415V, it features screw terminals that support cable sizes up to 95mm². With an endurance of up to 5 million mechanical operations, this modular version is ideal for both tertiary and industrial electrical installations, ensuring reliable performance and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 150 A
- Rated operation power at AC-3, 400 V: 75 kW
- Rated operation current Ie at AC-1, 400 V: 210 A
- Rated operation current Ie at AC-4, 400 V: 110 A
- Rated operation power at AC-4, 400 V: 55 kW
- Rated control supply voltage AC 50/60 Hz: 340-484 V
- Number of poles: 3
- Auxiliary contacts: 2 normally open (NO) + 2 normally closed (NC)
- Number of mechanical operations: up to 5 million
- Number of electrical operations: up to 1 million
- Number of operation cycles (AC-3) per hour: 1200
- Type of electrical connection: Cable clamp screw terminals
- Suitable for distribution board installation
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 1.5 kg
Key Features
- 150A AC-3 rating for switching 3-phase motors up to 75 kW at 415V
- Screw terminals supporting up to 95mm² cable size
- Equipped with 2NO + 2NC auxiliary contacts
- Endurance of up to 5 million mechanical and 1 million electrical operations
- Coil supply can be connected on top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Complies with IEC 60947-4-1 standard
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
