3 Pole Contactor 18.5kW | 110VAC Coil | DIN-Rail Mount by NHP
3 pole contactor with 18.5kW power and 110VAC coil—ideal for motor control and automation systems. Built for industrial and commercial use, with DIN-rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

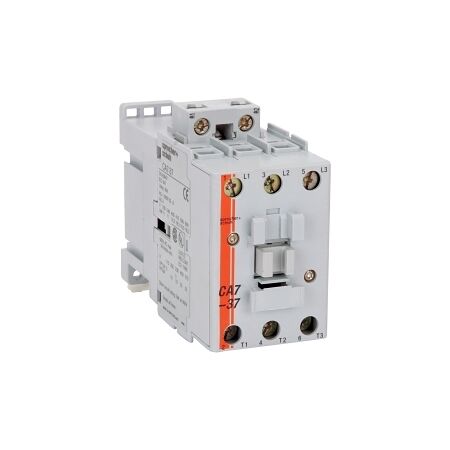

Product Name/Title: S+S CA7 Contactor 18.5kW 3Pole 110VAC Coil
Brand: NHP
SKU: CA73700110VAC
Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor
Technical Specifications
- Rated operation current at AC 3 400V: 37 A
- Rated operation power at AC 3 400V: 20 kW
- Rated operation current at AC 1 400V: 65 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 110 V
- Power consumption AC coil pickup: 105 VA
- Power consumption AC coil hold-in: 12.3 VA
- Degree of protection: IP2X
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 104mm x 45mm
- Weight: 0.5 kg
Key Features
- 3 Pole contactor with a rated operation power of 18.5 kW at 400V.
- Control supply voltage of 110V AC for reliable operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems and lighting control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient power management reduces energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA7 Contactor 18.5kW 3Pole 110VAC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
