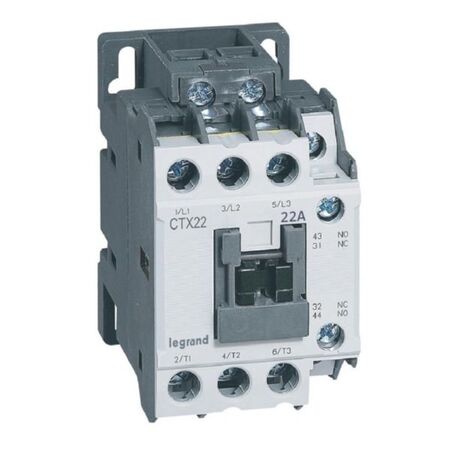

3-Pole Contactor 22A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
The 3-pole contactor with a 22A AC-3 rating is perfect for controlling 3-phase motors up to 11 kW. Featuring screw terminals for cables from 1.5mm² to 10mm² and a compact modular design, it ensures efficient use of cabinet space. Ideal for industrial and tertiary installations, this contactor is built for durability with an endurance of up to 15 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 22A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416116
Alternatively Known As: 3-pole motor contactor, 22A contactor, modular contactor, Legrand CTX3 contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Rated operation current Ie at AC-1, 400 V: 40 A
- Rated operation current Ie at AC-3, 400 V: 22 A
- Rated operation power at AC-3, 400 V: 11 kW
- Rated operation current Ie at AC-4, 400 V: 13 A
- Rated operation power at AC-4, 400 V: 5.5 kW
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Number of auxiliary contacts: 1NO + 1NC
- Cable clamp electrical connection
- Mechanical operations endurance: 15 million
- Electrical operations endurance: 2.5 million
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor with 22A AC-3 rating
- 1NO + 1NC auxiliary contacts factory assembled
- Screw terminals for cables from 1.5mm² to 10mm²
- Endurance up to 15 million mechanical and 2.5 million electrical operations
- Mounting on 35mm 'top hat' rail or mounting plate
- Coil supply possible on top or bottom side
- Compact modular design to optimize cabinet space
- NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 11 kW (415V)
- Use in motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 22A AC-3 rating with screw terminals is available for immediate purchase, ideal for industrial and tertiary motor control applications.
