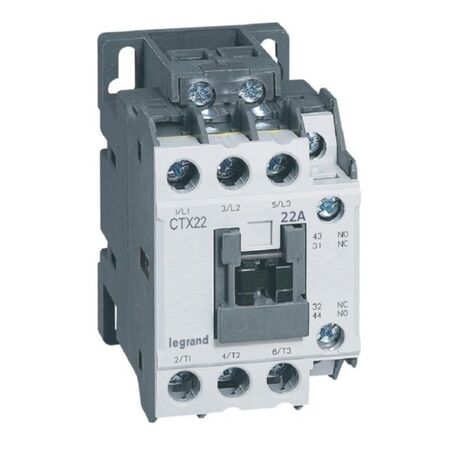

3-Pole Contactor 22A AC-3 Rating Screw Terminals Modular Design Legrand

BRAND: Legrand
SKU: 416116
$129.00 List price: $160.70
1 EA ($129.00 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The 3-pole contactor with a 22A AC-3 rating is perfect for controlling 3-phase motors up to 11 kW. Featuring screw terminals for cables from 1.5mm² to 10mm² and a
Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Rated operation current Ie at AC-1, 400 V: 40 A
  • Rated operation current Ie at AC-3, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 11 kW
  • Rated operation current Ie at AC-4, 400 V: 13 A
  • Rated operation power at AC-4, 400 V: 5.5 kW
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Number of auxiliary contacts: 1NO + 1NC
  • Cable clamp electrical connection
  • Mechanical operations endurance: 15 million
  • Electrical operations endurance: 2.5 million
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 22A AC-3 rating
  • 1NO + 1NC auxiliary contacts factory assembled
  • Screw terminals for cables from 1.5mm² to 10mm²
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Mounting on 35mm 'top hat' rail or mounting plate
  • Coil supply possible on top or bottom side
  • Compact modular design to optimize cabinet space
  • NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 11 kW (415V)
  • Use in motor control and protection systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

The Legrand CTX³ 3-pole contactor 22A AC-3 rating with screw terminals is available for immediate purchase, ideal for industrial and tertiary motor control applications.
