3 Pole Contactor 25A | 220-240V AC | Remote Control by Clipsal
3 pole contactor with 25A current and 220-240V AC—ideal for small commercial and residential motor, heating, and lighting control. Built for durability with remote control capability and 1,000,000 mechanical cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

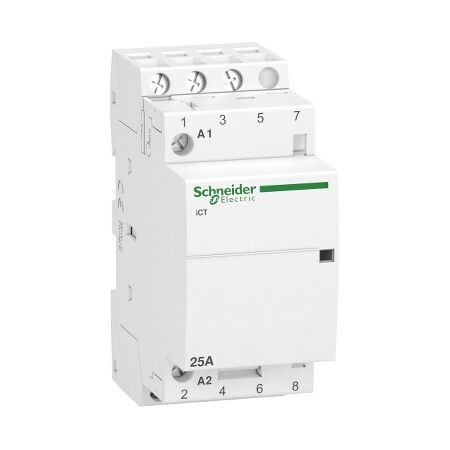

Product Name/Title: Acti9, Contactor, iCT, 3 poles, 3 NO, 25 A, 220..240 V AC
Brand: Clipsal
SKU: A9C20833
Alternatively Known As: Acti9 Contactor, iCT Contactor, 3 Pole Contactor, 25A Contactor
Technical Specifications
- Rated operational voltage: 220-240 V AC 50 Hz.
- Control signal type: maintained.
- IP degree of protection: IP20.
- Relative humidity: 95% at 55 °C.
- Ambient air temperature for operation: -5...60 °C.
- Rated insulation voltage: 500 V AC 50/60 Hz.
- Rated impulse withstand voltage: 4 kV.
- Switching frequency: 100 switching operations/day.
- Dimensions (H x L x W): 81mm x 60mm x 36mm
- Weight: 0.227 kg
Key Features
- 3 poles with 3 normally open contacts.
- Rated operational current of 25 A.
- Remote control capability.
- Mechanical durability of 1,000,000 cycles.
- Electrical durability of 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications for motor, heating, and lighting control.
Standards & Compliance
- Complies with IEC/EN 61095 for safety and performance standards.
Environmental Benefits
- Complies with IEC/EN 61095 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Contactor iCT 3 Poles 25A 220-240V AC is available now for immediate purchase. Ideal for small commercial and residential applications.
