3 Pole Contactor 32A | 24VDC Low Consumption Coil | IP20 Rated by Clipsal
3 pole contactor with 32A operational current and 24VDC low consumption coil—ideal for industrial motor control. Built for durability with 30 million mechanical cycles and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

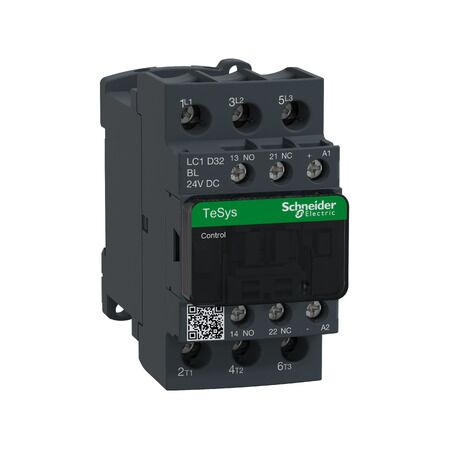

Product Name/Title: TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 24VDC low consumption coil
Brand: Clipsal
SKU: LC1D32BL
Alternatively Known As: TeSys Contactor, 3 Pole Contactor, AC-3 Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, 25...400Hz
- Rated operational current: 32A at <60 °C
- Mechanical durability: 30 million cycles
- Electrical durability: 1.65 million cycles at 32A AC-3
- IP degree of protection: IP20
- Control circuit voltage: 24V DC
- Inrush power: 2.4W
- Hold-in power consumption: 2.4W
- Dimensions (H x L x W): 85mm x 101mm x 45mm
- Weight: 0.535 kg
Key Features
- Low consumption coil with 24VDC
- Rated operational current of 32A at <= 440V AC
- Mechanical durability of 30 million cycles
- Electrical durability of 1.65 million cycles at 32A AC-3
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with IEC 60947-4-1 and IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial motor control applications.
