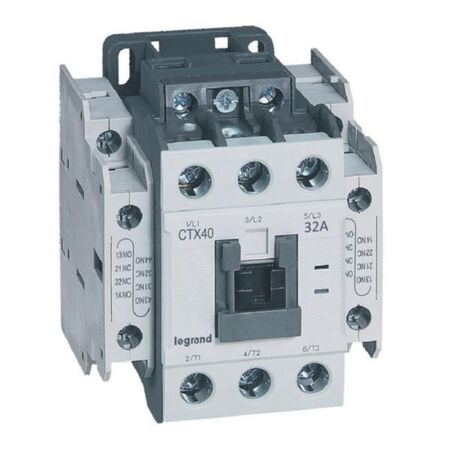

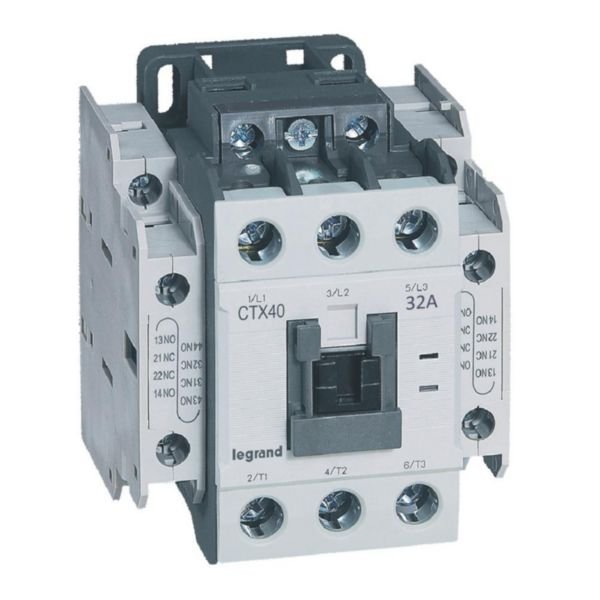

3-Pole Contactor 32A AC-3 Rating | Screw Terminals | Modular Design | @EA of 1 | by Legrand
The 3-pole contactor with a 32A AC-3 rating is perfect for industrial motor control applications. Featuring screw terminals for easy installation and a modular design, it ensures reliable operation with a rated power of 15 kW at 400 V. Ideal for switching 3-phase motors, this contactor is built for durability with an endurance of up to 12 million mechanical operations, making it a dependable choice for electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 32A AC-3 Rating | Screw Terminals | Modular Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416120
Alternatively Known As: 3-pole motor contactor, 32A contactor, Legrand CTX3 contactor, modular contactor, industrial motor contactor
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 32 A
- Rated operation power at AC-3, 400 V: 15 kW
- Rated operation current Ie at AC-1, 400 V: 50 A
- Rated operation current Ie at AC-4, 400 V: 17 A
- Rated operation power at AC-4, 400 V: 7.5 kW
- Number of poles: 3
- Auxiliary contacts: 2 normally open (NO) + 2 normally closed (NC)
- Control supply voltage AC 50/60 Hz: 20.4-26.4 V
- Electrical connection type: Screw terminals (cable clamp)
- Mechanical operations endurance: 12 million
- Electrical operations endurance: 2 million
- Operation cycles per hour (AC-3): 1800
- Mounting: 35 mm DIN rail or mounting plate
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor with 32A AC-3 rating
- Rated operation power of 15 kW at AC-3, 400 V
- 2NO + 2NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
- Screw terminals for power (2 x 1.5mm² to 10mm²), coil and auxiliary circuits
- Endurance up to 12 million mechanical and 2 million electrical operations
- Mounting on 35 mm top hat rail or mounting plate
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Designed for easy coil replacement
- Complies with substance-restriction and environmentally conscious design
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Tertiary and industrial electrical installations
- Switching of 3-phase motors up to 15 kW (415V)
- Control and protection of inductive and non-inductive loads
- Use in distribution boards
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with substance-restriction compliance to reduce hazardous materials
- Manufactured through an environmentally conscious process
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 32A AC-3 rating with screw terminals is available for immediate purchase, ideal for industrial and tertiary motor control applications.
