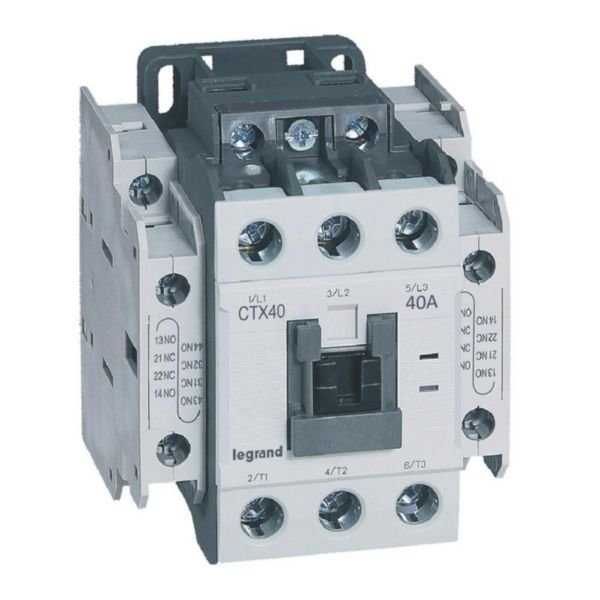

3-Pole Contactor 40A AC-3 Rating | 24V DC Actuation | Screw Terminals | @Each of 1 | by Legrand
The 3-pole contactor with a 40A AC-3 rating and 24V DC actuation is perfect for controlling 3-phase motors up to 18.5 kW. Designed for industrial and tertiary applications, it features screw terminals for easy installation and can handle up to 12 million mechanical operations. Ideal for switching inductive and non-inductive loads, this contactor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 40A AC-3 Rating | 24V DC Actuation | Screw Terminals | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416131
Alternatively Known As: 3-pole motor contactor, 40A contactor, DC coil contactor, Legrand CTX3 contactor
Technical Specifications
- Rated current AC-3: 40A at 400V
- Rated current AC-1: 60A at 400V
- Rated power AC-3: 18.5 kW at 400V
- Rated current AC-4: 17A at 400V
- Rated power AC-4: 7.5 kW at 400V
- Control supply voltage: 20.4-26.4 V DC
- Number of main contacts: 3 normally open
- Number of auxiliary contacts: 2 NO + 2 NC
- Screw terminal capacity: Power 2 x 10mm² to 16mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
- Number of mechanical operations: up to 12 million
- Number of electrical operations: up to 2 million
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole contactor with 40A AC-3 rating
- 24V DC coil actuation
- 2 normally open (NO) + 2 normally closed (NC) auxiliary contacts
- Screw terminals for power and coil connections
- Compact and modular design for space optimization
- Endurance up to 12 million mechanical and 2 million electrical operations
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Can be equipped with all Legrand CTX3 auxiliaries and accessories
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 18.5 kW (415V)
- Suitable for distribution boards
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
