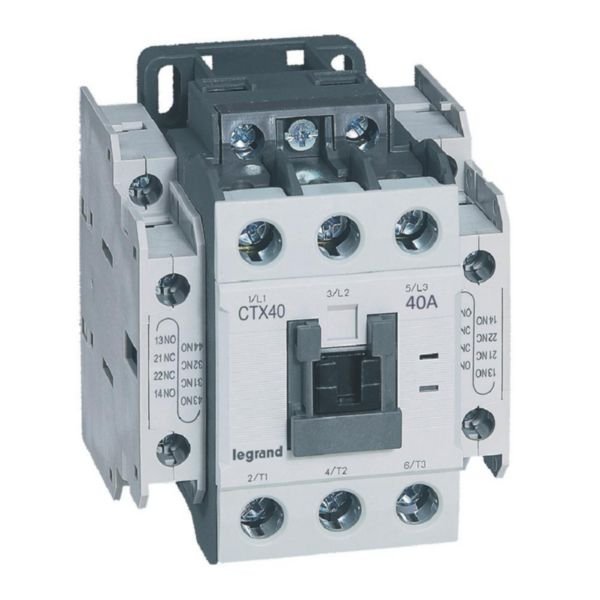

3-Pole Contactor 40A AC-3 Rating | Screw Terminals | Mirror Contact NC | @Each of 1 | by Legrand
The 3-pole contactor with a 40A AC-3 rating is perfect for industrial motor control and protection. Featuring screw terminals and a mirror contact NC, it supports power cables from 2 x 10mm² to 16mm². With an endurance of up to 12 million mechanical operations, this reliable contactor is designed for seamless integration into motor control systems, ensuring safety and efficiency in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 40A AC-3 Rating | Screw Terminals | Mirror Contact NC | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416136
Alternatively Known As: 3-pole motor contactor, 40A contactor, Legrand CTX3 contactor, industrial motor starter, screw terminal contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Rated operation current Ie at AC-1, 400 V: 60 A
- Rated operation current Ie at AC-3, 400 V: 40 A
- Rated operation power at AC-3, 400 V: 18.5 kW
- Rated operation current Ie at AC-4, 400 V: 17 A
- Rated operation power at AC-4, 400 V: 7.5 kW
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Number of auxiliary contacts NO: 2
- Number of auxiliary contacts NC: 2
- Type of electrical connection: Cable clamp screw terminals
- Endurance: 12 million mechanical, 2 million electrical operations
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole contactor with 40A AC-3 rating for switching 3-phase motors up to 18.5 kW (415V)
- 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts with mirror contact NC
- Screw terminals supporting power cables from 2 x 10mm² to 16mm²
- Endurance of up to 12 million mechanical and 2 million electrical operations
- Number of operation cycles (AC-3) per hour: 1800
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Compact size for optimized cabinet space
- Compatible with all Legrand CTX³ auxiliaries and accessories
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and control gear - contactors and motor starters
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing processes
- High endurance reduces replacement frequency and waste
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 40A AC-3 rating with screw terminals and mirror contact NC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
