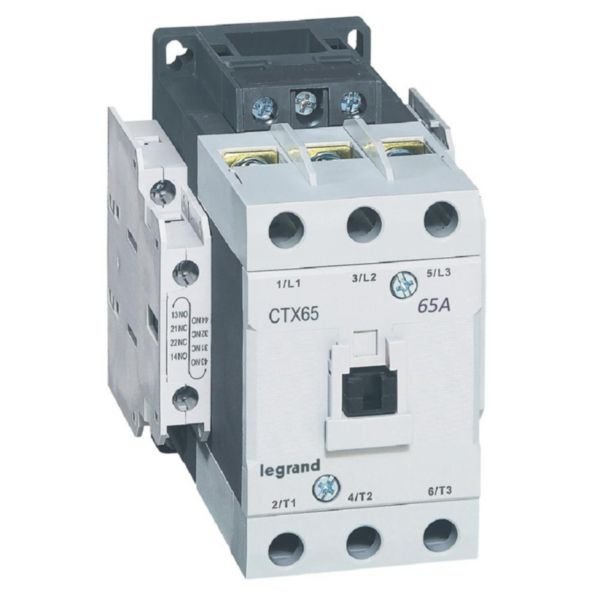

3-Pole Contactor 65A AC-3 Rating | DC Voltage Actuation | Screw Terminals 35mm² Max | @Each of 1 | by Legrand
The 3-pole contactor with a 65A AC-3 rating is perfect for industrial motor control and protection. Designed for DC voltage actuation, it features screw terminals accommodating cable sizes up to 35mm². With an impressive endurance of up to 12 million mechanical operations, this contactor is ideal for reliable performance in demanding electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 65A AC-3 Rating | DC Voltage Actuation | Screw Terminals 35mm² Max | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416161
Alternatively Known As: 3-pole motor contactor, DC coil contactor, 65A industrial contactor, Legrand CTX3 contactor
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 65 A
- Rated operation current Ie at AC-1, 400 V: 100 A
- Rated operation power at AC-3, 400 V: 30 kW
- Rated operation current Ie at AC-4, 400 V: 47 A
- Rated operation power at AC-4, 400 V: 22 kW
- Number of poles: 3
- Auxiliary contacts: 2NO + 2NC
- Rated control supply voltage: 20.4-26.4 V DC
- Electrical connection type: Screw terminals (cable clamp)
- Number of operation cycles (AC-3) per hour: 1800
- Mechanical operations endurance: up to 12 million
- Electrical operations endurance: up to 2 million
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 1.2 kg
Key Features
- 3-pole contactor with 65A AC-3 rating for 3-phase motors up to 22 kW at 415V
- DC voltage actuation with rated control supply voltage 20.4-26.4 V DC
- 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
- Screw terminals supporting cable sizes from 2 x 10mm² to 35mm² for power
- Endurance of up to 12 million mechanical operations and 2 million electrical operations
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Compact size for optimized cabinet space
- Suitable for mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
Professional Installation Requirements
- Installation by a qualified electrician is recommended. Follow all safety instructions and use only Legrand branded accessories.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
- High endurance reduces replacement frequency and waste
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 65A AC-3 rating with DC voltage actuation is available for immediate purchase. Ideal for industrial and tertiary motor control applications.
