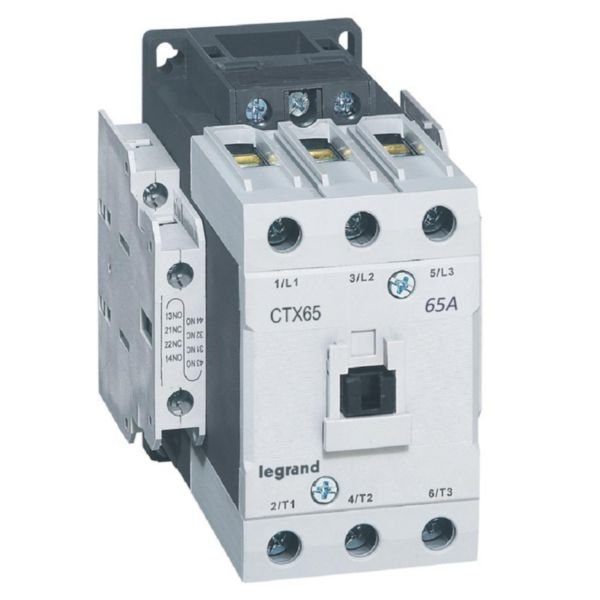

3-Pole Contactor 65A AC-3 Rating | Cage Terminals | 2NO+2NC Auxiliary Contacts | @EA of 1 | by Legrand
The 3-pole contactor with a 65A AC-3 rating is perfect for switching 3-phase motors up to 22 kW. Featuring cage terminals and 2NO+2NC auxiliary contacts, this contactor is designed for industrial and tertiary applications, ensuring reliable performance and compliance with safety standards. Its modular design allows for easy installation and maintenance, making it an ideal choice for motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 65A AC-3 Rating | Cage Terminals | 2NO+2NC Auxiliary Contacts | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416174
Alternatively Known As: 3-pole motor contactor, 65A contactor, Legrand CTX3 contactor, industrial motor contactor, AC-3 rated contactor
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 65 A
- Rated operation power at AC-3, 400 V: 30 kW
- Rated operation current Ie at AC-1, 400 V: 100 A
- Rated operation current Ie at AC-4, 400 V: 47 A
- Rated operation power at AC-4, 400 V: 22 kW
- Rated control supply voltage AC 50/60 Hz: 93.5-121 V
- Number of normally open main contacts: 3
- Number of normally closed auxiliary contacts: 2
- Number of normally open auxiliary contacts: 2
- Type of electrical connection: Screw connection
- Suitable for mounting on 35 mm top hat rail (IEC 60715) or mounting plate
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- 65A AC-3 rating for switching 3-phase motors up to 22 kW
- 2NO + 2NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
- Cage terminals for power and coil connections
- Modular design with screw connections
- Easy coil replacement and removable front cover for visual arc inspection
- Endurance up to 12 million mechanical and 2 million electrical operations
- Operation cycles up to 1800 per hour (AC-3)
- Coil supply possible on top or bottom side
- Compact size for optimized cabinet space
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 22 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand CTX³ 3-pole contactor 65A AC-3 rating with 2NO+2NC auxiliary contacts is available for immediate purchase. Ideal for industrial and tertiary motor control applications.
