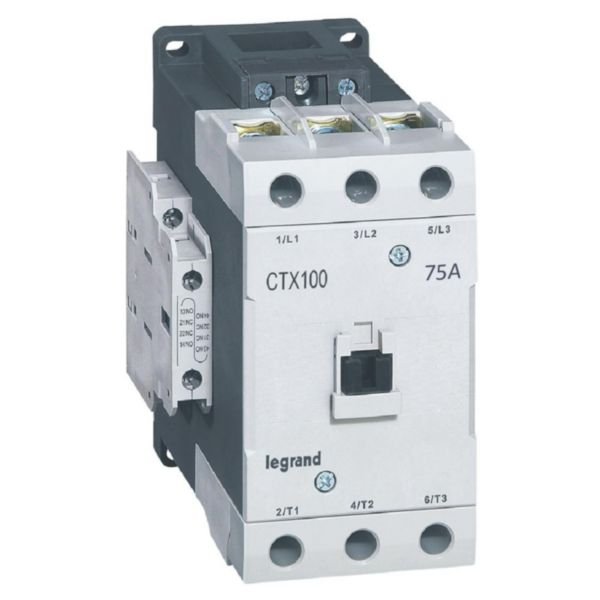

3-Pole Contactor 75A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416180
$429.00 List price: $534.50
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 75A AC-3 rating is perfect for industrial motor control, handling up to 37 kW at 415V. Featuring screw terminals for easy connections and a modular design for DIN rail mounting, this contactor ensures reliable performance with an endurance of 12 million mechanical operations. Ideal for both inductive and non-inductive loads, it’s a must-have for any electrical installation.

Product Name/Title: 3-Pole Contactor 75A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416180

Alternatively Known As: 3-pole motor contactor, 75A contactor, modular contactor, Legrand CTX3 contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 75 A
  • Rated operation power at AC-3, 400 V: 37 kW
  • Rated operation current Ie at AC-1, 400 V: 110 A
  • Rated operation current Ie at AC-4, 400 V: 52 A
  • Rated operation power at AC-4, 400 V: 25 kW
  • Number of auxiliary contacts: 2 normally open + 2 normally closed
  • Rated control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Electrical connection type: Screw terminals (cable clamp)
  • Endurance: 12 million mechanical operations, 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.5 kg
Key Features
  • 3-pole contactor with 75A AC-3 rating for motor control up to 37 kW at 415V
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • Screw terminals for power and coil connections
  • Modular design suitable for 35 mm DIN rail mounting
  • Endurance of up to 12 million mechanical and 2 million electrical operations
  • Coil supply can be connected on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured using environmentally conscious processes
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

Legrand CTX³ 3-pole contactor 75A AC-3 rating is available for immediate purchase, ideal for industrial and tertiary motor control applications.
