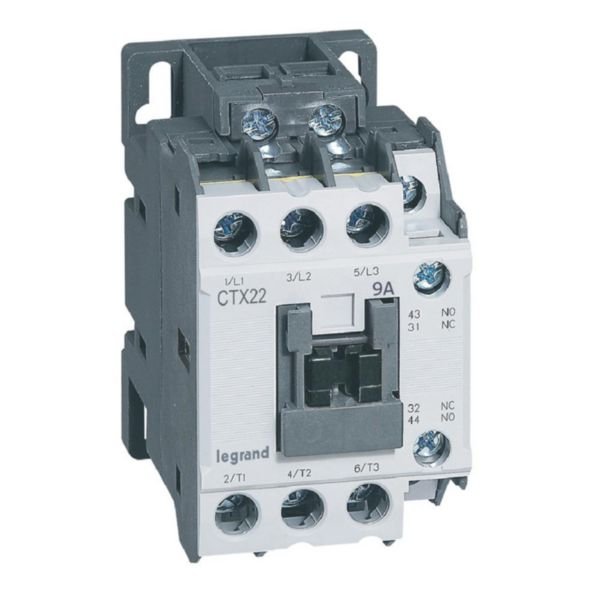

3-Pole Contactor | 9A AC-3 Rating | 24V DC Actuation | Mirror Contact NC | @Each of 1 | by Legrand
The 3-pole contactor with a 9A AC-3 rating and 24V DC actuation is perfect for motor control in industrial and tertiary applications. Featuring a mirror contact NC and robust screw terminal connections, it ensures reliable operation with an endurance of up to 15 million mechanical cycles. Ideal for switching inductive and non-inductive loads, this contactor is designed for professional installation to meet electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor | 9A AC-3 Rating | 24V DC Actuation | Mirror Contact NC | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416081
Alternatively Known As: 3-pole motor contactor, 9A AC-3 contactor, 24V DC coil contactor, Legrand CTX3 contactor
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Number of main contacts: 3 normally open
- Auxiliary contacts: 1 normally open + 1 normally closed (mirror contact)
- Rated operation current AC-1 (400 V): 25 A
- Rated operation current AC-3 (400 V): 9 A
- Rated operation power AC-3 (400 V): 4 kW
- Rated operation current AC-4 (400 V): 6 A
- Rated operation power AC-4 (400 V): 2.2 kW
- Electrical connection: Screw terminals for power and coil
- Mechanical endurance: 15 million operations
- Electrical endurance: 2.5 million operations
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor with 9A AC-3 and 25A AC-1 ratings
- 1NO + 1NC auxiliary contacts with NC mirror contact compliant with IEC 60947-4-1
- Rated operation power of 4 kW at AC-3, 400 V
- Coil supply voltage 20.4-26.4 V DC with actuation from top or bottom
- Endurance up to 15 million mechanical and 2.5 million electrical operations
- Mounting on 35 mm 'top hat' rail or mounting plate
- Screw terminal connections for power, coil, and auxiliary circuits
- Eco-friendly design complying with substance-restriction requirements
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Motor control and protection for 3-phase motors up to 4 kW
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with eco-friendly processes and complies with substance-restriction requirements
- Long operational life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
