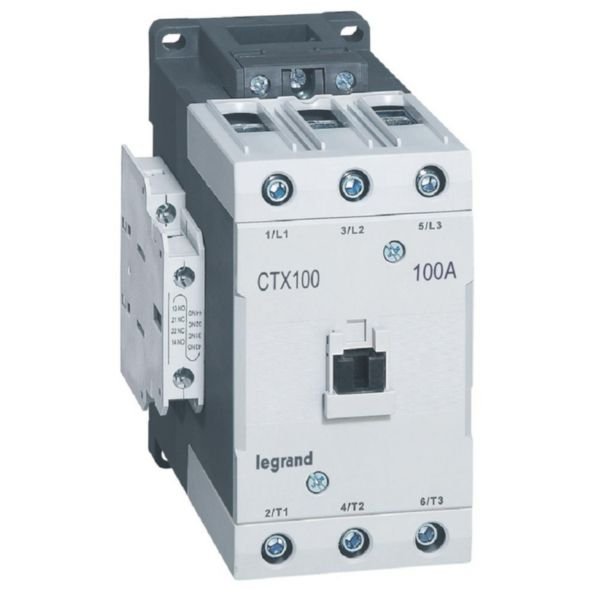

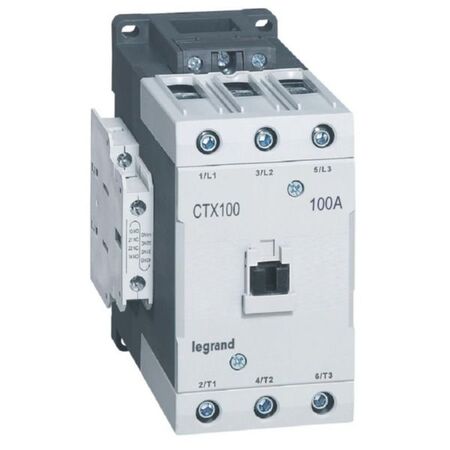

3-Pole Contactor CTX³ | 100A AC-3 Rating | Modular Design | Screw Connection | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416230
$713.90 List price: $889.60
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for reliable motor control with a 100A AC-3 rating, perfect for switching 3-phase motors up to 55 kW. Its modular design and screw connection ensure easy installation and optimal cabinet space usage. Ideal for industrial and tertiary electrical installations, this contactor offers an endurance of up to 12 million mechanical operations, making it a robust choice for demanding applications.

Product Name/Title: 3-Pole Contactor CTX³ | 100A AC-3 Rating | Modular Design | Screw Connection | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416230

Alternatively Known As: 3-pole motor contactor, 100A contactor, modular contactor, Legrand CTX3 contactor

Technical Specifications
  • Rated operation current AC-3 (400V): 105 A
  • Rated operation power AC-3 (400V): 55 kW
  • Rated operation current AC-1 (400V): 160 A
  • Rated operation current AC-4 (400V): 75 A
  • Rated operation power AC-4 (400V): 37 kW
  • Number of auxiliary contacts: 2 normally open + 2 normally closed
  • Control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Electrical connection: Screw connection
  • Endurance: 12 million mechanical, 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Mounting: 35 mm top hat rail or mounting plate
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.2 kg
Key Features
  • 100A AC-3 rating for switching 3-phase motors up to 55 kW at 415V
  • 2NO + 2NC auxiliary contacts with mirror contact feature
  • Endurance of up to 12 million mechanical and 2 million electrical operations
  • Modular design with screw connection and compact size for cabinet space optimization
  • Coil supply possible from top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Complies with IEC 60947-4-1 standard
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and control gear - Contactors and motor-starters
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
