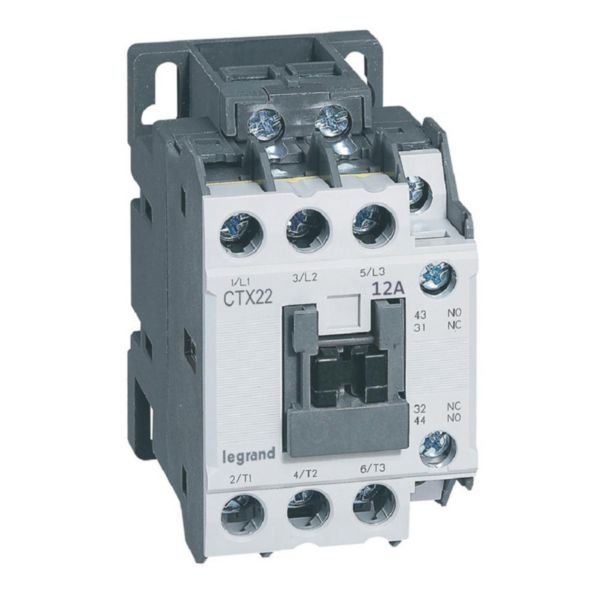

3-Pole Contactor CTX³ | 12A AC-3 Rating | 24V DC Actuation | Screw Terminals | @EA of 1 | by Legrand
The 3-pole contactor CTX³ is designed for reliable motor control with a 12A AC-3 rating, perfect for 3-phase motors up to 5.5 kW. Featuring 24V DC actuation and screw terminals for easy installation, this contactor is ideal for industrial and tertiary applications, ensuring long-lasting performance with up to 15 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor CTX³ | 12A AC-3 Rating | 24V DC Actuation | Screw Terminals | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416091
Alternatively Known As: 3-pole motor contactor, 12A motor contactor, Legrand CTX3 contactor, 24V DC coil contactor
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Number of main contacts: 3 normally open
- Auxiliary contacts: 1 NO + 1 NC
- Rated operation current AC-1 (400V): 25 A
- Rated operation current AC-3 (400V): 12 A
- Rated operation power AC-3 (400V): 5.5 kW
- Rated operation current AC-4 (400V): 9 A
- Rated operation power AC-4 (400V): 4 kW
- Cable clamp electrical connection
- Number of operation cycles (AC-3) per hour: 1800
- Mechanical endurance: 15 million operations
- Electrical endurance: 2.5 million operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor with 12A AC-3 rating for 3-phase motors up to 5.5 kW
- 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts
- Screw terminals supporting cables from 1mm² to 6mm² for power and 0.75mm² to 2.5mm² for coil and auxiliary circuits
- Endurance of up to 15 million mechanical operations and 2.5 million electrical operations
- Mounts on 35mm 'top hat' mounting rail or mounting plate
- Coil supply can be connected from top or bottom side
- Compact size to optimize cabinet space
- Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
- Installation by a qualified electrician is recommended. Follow Legrand installation instructions and use only Legrand branded accessories.
Applications
- Tertiary and industrial motor control and protection
- Switching of 3-phase motors up to 5.5 kW
- Suitable for inductive and non-inductive load switching
- Use in distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured using environmentally conscious processes
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
