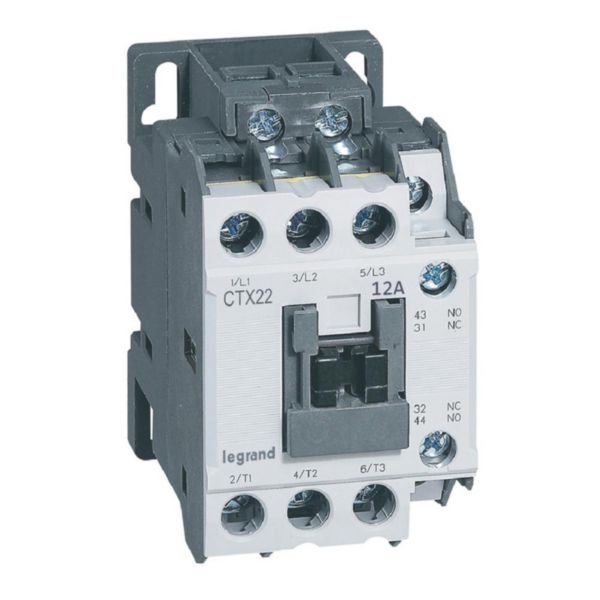

3-Pole Contactor CTX³ | 12A AC-3 Rating | 1NO+1NC Auxiliary Contacts | Mirror Contact Compliance | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416090
$80.00 List price: $99.70
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for reliable motor control with a 12A AC-3 rating, making it ideal for switching 3-phase motors up to 5.5 kW. Featuring 1 normally open and 1 normally closed auxiliary contact, this contactor ensures compliance with IEC standards and offers an impressive endurance of up to 15 million mechanical operations. Perfect for industrial and tertiary applications, it guarantees safety and efficiency in motor protection.

Product Name/Title: 3-Pole Contactor CTX³ | 12A AC-3 Rating | 1NO+1NC Auxiliary Contacts | Mirror Contact Compliance | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416090

Alternatively Known As: 3-pole motor contactor, 12A contactor, Legrand CTX3 contactor, industrial motor switch, auxiliary contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Rated operation current Ie at AC-1, 400 V: 25 A
  • Rated operation current Ie at AC-4, 400 V: 9 A
  • Rated operation power at AC-4, 400 V: 4 kW
  • Rated control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Number of poles: 3
  • Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
  • Mounting: 35 mm top hat rail or mounting plate
  • Electrical connection: Cable clamp terminals
  • Mechanical operations endurance: 15 million
  • Electrical operations endurance: 2.5 million
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 75mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 12A AC-3 rating for switching 3-phase motors up to 5.5 kW at 415V
  • 1NO + 1NC auxiliary contacts with NC contact as mirror contact per IEC 60947-4-1
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Can be mounted on 35mm 'top hat' mounting rail or mounting plate
  • Coil supply possible on top or bottom side
  • Screw terminals for power, coil, and auxiliary circuits
  • Designed for easy coil replacement
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 5.5 kW
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - contactors and motor-starters
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured through an environmentally conscious process
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
