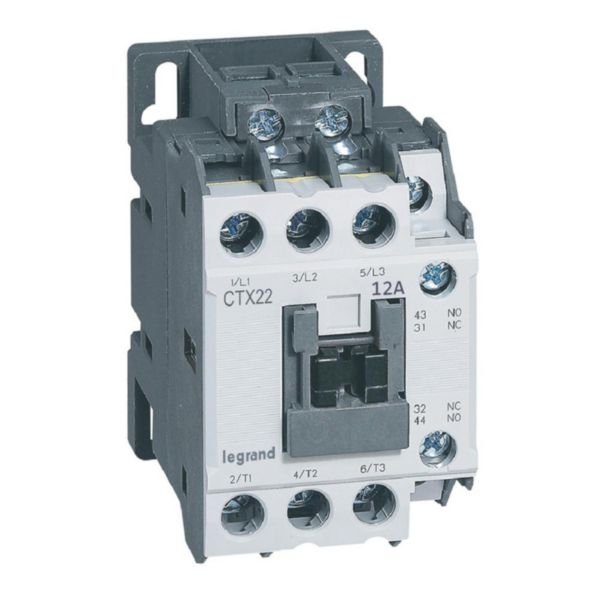

3-Pole Contactor CTX³ | 12A AC-3 Rating | Screw Terminals & Mirror Contact NC | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416099
$80.00 List price: $99.70
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ with a 12A AC-3 rating is perfect for motor control in industrial and tertiary applications. Featuring screw terminals and a mirror contact NC, it ensures reliable switching for 3-phase motors up to 5.5 kW. Built for durability with an endurance of 15 million mechanical operations, this contactor is designed for professional installation to meet electrical safety standards.

Product Name/Title: 3-Pole Contactor CTX³ | 12A AC-3 Rating | Screw Terminals & Mirror Contact NC | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416099

Alternatively Known As: 3-pole motor contactor, 12A contactor, Legrand CTX3 contactor, industrial motor switch, screw terminal contactor

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 352.75-456.5 V
  • Rated control supply voltage AC 60 Hz: 352.75-456.5 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 25 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Rated operation current Ie at AC-4, 400 V: 9 A
  • Rated operation power at AC-4, 400 V: 4 kW
  • Number of auxiliary contacts NO: 1
  • Number of auxiliary contacts NC: 1
  • Type of electrical connection of main circuit: Cable clamp
  • Endurance: 15 million mechanical operations, 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 12A AC-3 rating
  • Switching capacity for 3-phase motors up to 5.5 kW at 415V
  • Rated operation current 25A at AC-1 and 12A at AC-3
  • 1NO + 1NC auxiliary contacts with NC mirror contact compliant with IEC 60947-4-1
  • Screw terminals for power (2 x 1mm² to 6mm²), coil (0.75mm² to 2.5mm²), and auxiliary circuits
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Can be mounted on 35mm 'top hat' mounting rail or mounting plate
  • Coil supply possible from top or bottom side
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 5.5 kW (415V)
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with IEC 60947-4-1 standard
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured through an environmentally conscious process
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.

Available Now

The Legrand CTX³ 3-pole contactor 12A AC-3 rating with screw terminals and mirror contact NC is available for immediate purchase. Ideal for industrial and tertiary motor control applications.
