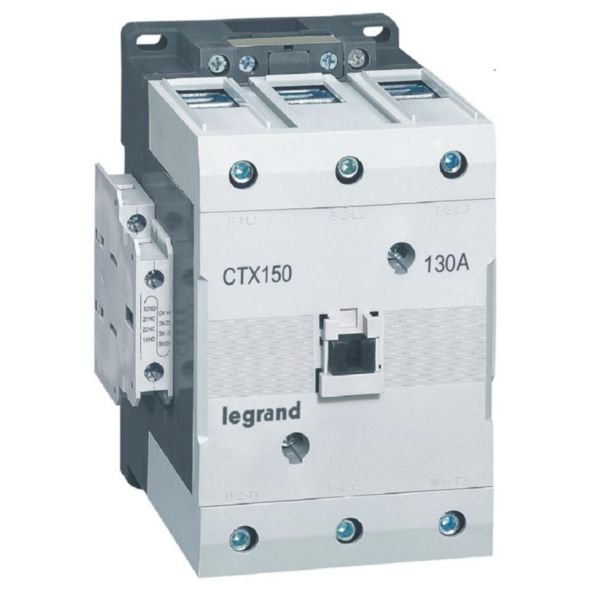

3-Pole Contactor CTX³ | 130A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Actuation | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416251
$1,070.00 List price: $1,333.30
+ −
30 Days Return Delivery Options
The CTX³ 3-pole contactor is designed for reliable motor control with a 130A AC-3 rating, making it ideal for industrial applications. Featuring 2 normally open and 2 normally closed auxiliary contacts, this contactor supports DC actuation with a control supply voltage of 20.4-26.4 V DC. Built for durability, it ensures up to 5 million mechanical operations, making it a perfect choice for electrical installations in commercial and industrial settings.

Product Name/Title: 3-Pole Contactor CTX³ | 130A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Actuation | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416251

Alternatively Known As: 3-pole motor contactor, 130A contactor, DC coil contactor, Legrand motor starter, industrial contactor

Technical Specifications
  • Rated operation current AC-3 (400 V): 130 A
  • Rated operation current AC-1 (400 V): 160 A
  • Rated operation power AC-3 (400 V): 60 kW
  • Rated operation current AC-4 (400 V): 90 A
  • Rated operation power AC-4 (400 V): 45 kW
  • Number of main contacts normally open: 3
  • Number of auxiliary contacts normally open: 2
  • Number of auxiliary contacts normally closed: 2
  • Rated control supply voltage: 20.4-26.4 V DC
  • Type of electrical connection: Screw connection
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 110mm x 80mm x 90mm
  • Weight: 1.5 kg
Key Features
  • Rated 130A AC-3 for switching 3-phase motors up to 60 kW at 415V
  • Supports resistive loads up to 160A AC-1
  • Equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • DC coil actuation with rated control supply voltage 20.4-26.4 V DC
  • Endurance of up to 5 million mechanical and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1200
  • Cage terminals for power (2 x 35mm² to 95mm²) and coil/auxiliary circuits (0.75mm² to 2.5mm²)
  • Removable front cover for visual inspection of arc chambers and contacts
  • Coil supply possible from top or bottom side
  • Complies with IEC 60947-4-1 standard
  • Designed with environmentally conscious processes and substance-restriction compliance
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Distribution boards in commercial and industrial settings
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 (equivalent to IEC 60947-4-1) for contactors and motor starters
Environmental Benefits
  • Designed with substance-restriction compliance to reduce hazardous materials
  • Manufactured using environmentally conscious processes
Warranty Information

Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
