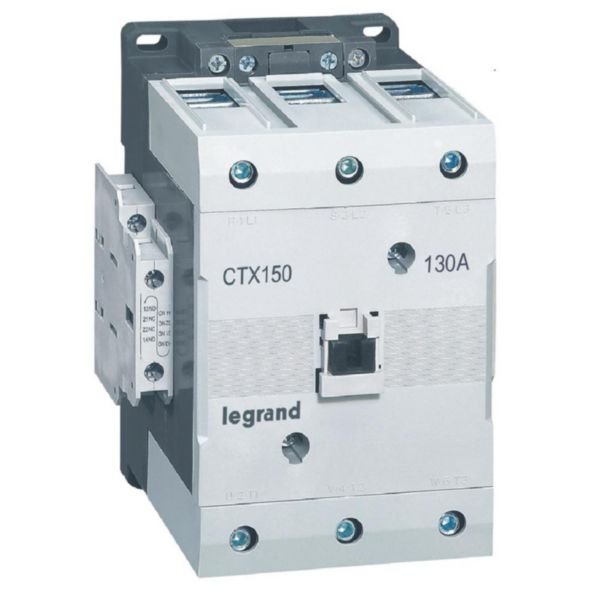

3-Pole Contactor CTX³ | 130A AC-3 Rating | Modular Design | Screw Connection | @Each of 1 | by Legrand
The 3-pole contactor CTX³ with a 130A AC-3 rating is perfect for industrial and tertiary motor control applications. Featuring a modular design and screw connection, it ensures reliable operation with up to 5 million mechanical cycles. Ideal for switching 3-phase motors up to 60 kW, this contactor is built for durability and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 130 A
- Rated operation power at AC-3, 400 V: 60 kW
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-4, 400 V: 90 A
- Rated operation power at AC-4, 400 V: 45 kW
- Rated control supply voltage AC 50 Hz: 340-484 V
- Rated control supply voltage AC 60 Hz: 340-484 V
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Number of auxiliary contacts NO: 2
- Number of auxiliary contacts NC: 2
- Type of electrical connection: Screw connection
- Number of operation cycles (AC-3) per hour: 1200
- Mechanical operations endurance: 5 million
- Electrical operations endurance: 1 million
- Dimensions (H x L x W): 110mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- 3-pole contactor with 130A AC-3 rating
- 2NO + 2NC auxiliary contacts factory assembled
- Endurance up to 5 million mechanical and 1 million electrical operations
- Coil supply possible on top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- IEC 60947-4-1 compliant
- Screw connection for main circuit
- Cage terminals capacity: Power 2 x 35mm² to 95mm², Coil 0.75mm² to 2.5mm², Aux circuit 0.75mm² to 2.5mm²
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper operation.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 60 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with IEC 60947-4-1 standard
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
Legrand CTX³ 3-pole contactor 130A AC-3 rating is available for immediate purchase. Ideal for industrial and tertiary motor control applications.
