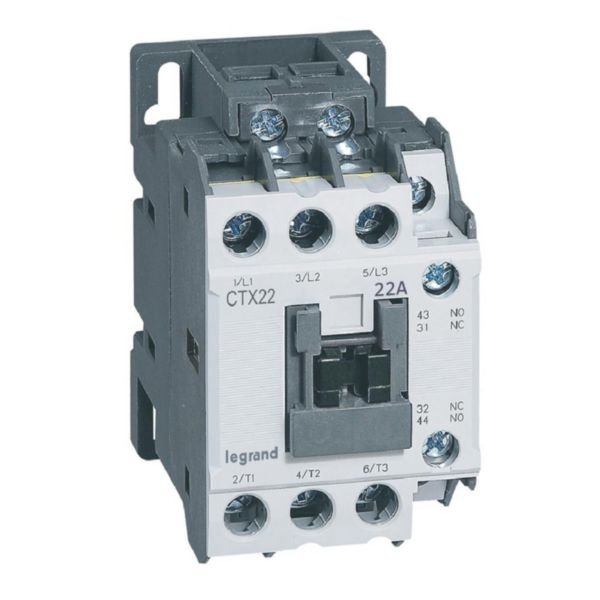

3-Pole Contactor CTX³ | 22A AC-3 Rating | Dual Coil Supply Option | Mirror Contact NC | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416114
$129.00 List price: $160.70
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for reliable motor control, featuring a 22A AC-3 rating and a dual coil supply option for versatile installation. Ideal for industrial and tertiary applications, it ensures efficient switching of 3-phase motors up to 11 kW at 415V, with a compact design that optimizes cabinet space and complies with environmental standards.

Product Name/Title: 3-Pole Contactor CTX³ | 22A AC-3 Rating | Dual Coil Supply Option | Mirror Contact NC | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416114

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, 22A motor starter contactor, industrial motor contactor

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 93.5-121 V
  • Rated control supply voltage AC 60 Hz: 93.5-121 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 40 A
  • Rated operation current Ie at AC-3, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 11 kW
  • Rated operation current Ie at AC-4, 400 V: 13 A
  • Rated operation power at AC-4, 400 V: 5.5 kW
  • Number of auxiliary contacts normally open: 1
  • Number of auxiliary contacts normally closed: 1
  • Type of electrical connection of main circuit: Cable clamp
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 22A AC-3 rating for switching 3-phase motors up to 11 kW at 415V
  • 40A AC-1 rating for resistive loads
  • 1NO + 1NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
  • Dual coil supply option (top or bottom side)
  • DIN rail mount (35 mm top hat rail IEC 60715) and mounting plate compatible
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Screw terminals for power, coil, and auxiliary circuits
  • Compact size to optimize cabinet space
  • Environmentally conscious design complying with substance-restriction requirements
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 11 kW (415V)
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 – Low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Engineered for long operational life reducing waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty policy for details.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
