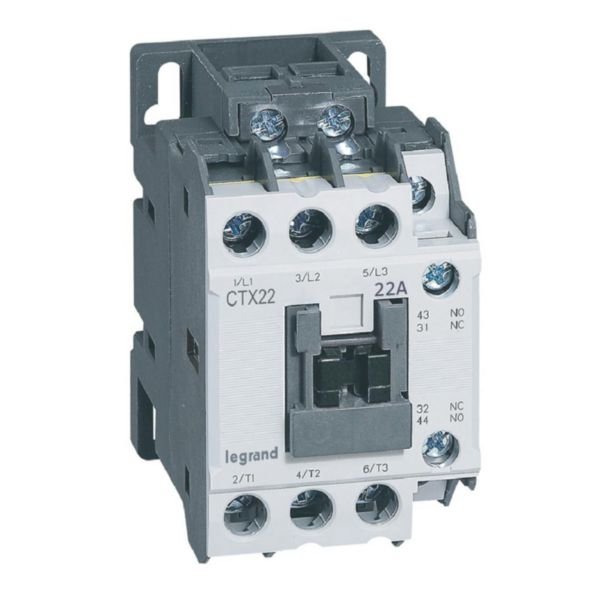

3-Pole Contactor CTX³ | 22A AC-3 Rating | Screw Terminals & Mirror Contact NC | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416110
$129.00 List price: $160.70
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ with a 22A AC-3 rating is perfect for industrial and tertiary motor control applications. Featuring screw terminals for easy cable connections and a mirror contact NC for enhanced functionality, this reliable contactor is designed for switching inductive and non-inductive loads. Built to endure up to 15 million mechanical operations, it ensures long-lasting performance in demanding environments.

Product Name/Title: 3-Pole Contactor CTX³ | 22A AC-3 Rating | Screw Terminals & Mirror Contact NC | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416110

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, 22A motor contactor, industrial contactor, screw terminal contactor

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V AC 50/60 Hz
  • Number of main contacts: 3 normally open
  • Auxiliary contacts: 1 normally open + 1 normally closed (mirror contact)
  • Rated operation current AC-1 (400V): 40 A
  • Rated operation current AC-3 (400V): 22 A
  • Rated operation current AC-4 (400V): 13 A
  • Rated operation power AC-3 (400V): 11 kW
  • Rated operation power AC-4 (400V): 5.5 kW
  • Terminal capacity: Power 2 x 1.5mm² to 10mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
  • Mounting: DIN rail 35 mm top hat rail (IEC 60715) or mounting plate
  • Mechanical endurance: 15 million operations
  • Electrical endurance: 2.5 million operations
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 70mm x 65mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 22A AC-3 rating
  • 1NO + 1NC auxiliary contacts with mirror contact NC
  • Screw terminals for cable clamp connection
  • Rated operation current: 40A AC-1, 22A AC-3, 13A AC-4 at 400V
  • Rated operation power: 11 kW AC-3, 5.5 kW AC-4 at 400V
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Coil supply voltage: 20.4-26.4 V AC 50/60 Hz
  • DIN rail mount compatible with 35 mm top hat rail (IEC 60715)
  • Compact size for optimized cabinet space
  • Coil supply possible from top or bottom side
  • Complies with IEC 60947-4-1 standard
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with safety standards and proper operation.
Applications
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 11 kW at 415V
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
