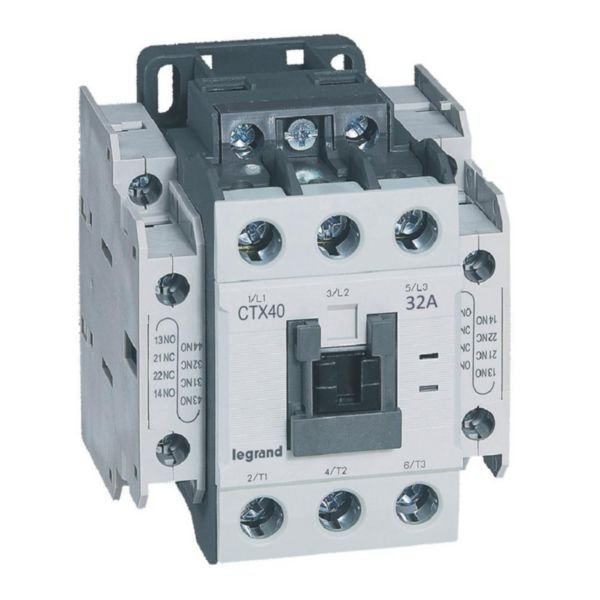

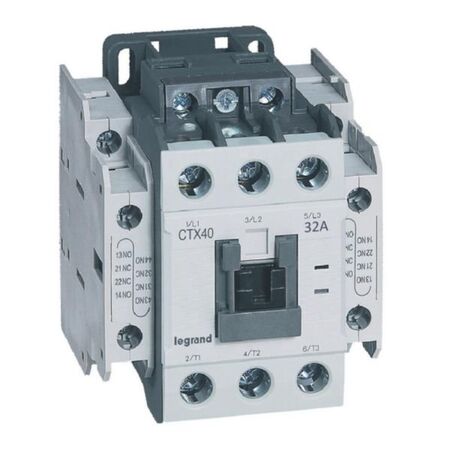

3-Pole Contactor CTX³ | 32A AC-3 Rating | 24V DC Actuation | Screw Terminals | @Each of 1 | by Legrand
The 3-pole contactor CTX³ is designed for reliable motor control, featuring a 32A AC-3 rating and 24V DC actuation. Ideal for industrial and tertiary applications, it offers screw terminals for easy installation and up to 12 million mechanical operations. This contactor is perfect for switching 3-phase motors up to 15 kW, ensuring efficient performance and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor CTX³ | 32A AC-3 Rating | 24V DC Actuation | Screw Terminals | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416121
Alternatively Known As: 3-pole motor contactor, 32A contactor, 24V DC coil contactor, Legrand CTX3 contactor
Technical Specifications
- Rated current AC-3: 32A at 400V
- Rated current AC-1: 50A at 400V
- Rated power AC-3: 15 kW at 400V
- Rated power AC-4: 7.5 kW at 400V
- Rated current AC-4: 17A at 400V
- Control supply voltage: 20.4-26.4 V DC
- Number of main contacts: 3 normally open
- Number of auxiliary contacts: 2 NO + 2 NC
- Electrical connection: Cable clamp screw terminals
- Mounting: 35mm DIN rail or mounting plate
- Mechanical operations endurance: 12 million
- Electrical operations endurance: 2 million
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 32A AC-3 rating for switching 3-phase motors up to 15 kW at 415V
- 50A AC-1 rating for resistive loads
- 24V DC coil actuation with screw terminals
- 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
- Complies with IEC 60947-4-1 standard
- Mounts on 35mm DIN rail or mounting plate
- Up to 12 million mechanical and 2 million electrical operations endurance
- Coil supply can be connected on top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Compact size to optimize cabinet space
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended. Read installation instructions carefully and use only Legrand branded accessories.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 15 kW (415V)
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for motor control and protection in industrial and tertiary applications.
