3-Pole Contactor CTX³ | 50A AC-3 Rating | Modular Screw Connection | Dual Coil Supply Option | @EA of 1 | by Legrand
The 3-pole contactor CTX³ is designed for industrial motor control, featuring a robust 50A AC-3 rating and modular screw connection for easy installation. Ideal for controlling 3-phase motors up to 22 kW, it offers a dual coil supply option and high endurance with up to 12 million mechanical operations. Perfect for electricians and industrial applications, this contactor ensures reliable performance and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

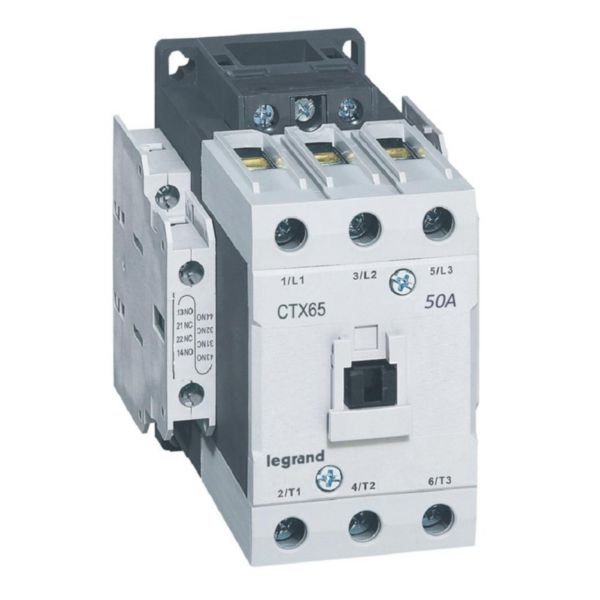

Product Name/Title: 3-Pole Contactor CTX³ | 50A AC-3 Rating | Modular Screw Connection | Dual Coil Supply Option | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416154
Alternatively Known As: 3-pole motor contactor, 50A contactor, Legrand CTX3 contactor, industrial motor starter contactor
Technical Specifications
- Rated operation current AC-3 (400 V): 50 A
- Rated operation power AC-3 (400 V): 22 kW
- Rated operation current AC-1 (400 V): 70 A
- Rated operation current AC-4 (400 V): 32 A
- Rated operation power AC-4 (400 V): 15 kW
- Control supply voltage AC 50/60 Hz: 93.5-121 V
- Number of main contacts: 3 normally open
- Number of auxiliary contacts: 2 NO + 2 NC
- Electrical connection type: Screw connection
- Mounting: 35 mm DIN rail or mounting plate
- Mechanical operations endurance: 12 million
- Electrical operations endurance: 2 million
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole contactor with 50A AC-3 rating for 3-phase motors up to 22 kW (415V)
- Modular screw connection with cage terminals supporting up to 35 mm² wiring
- Dual coil supply option allowing coil supply from top or bottom
- Equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
- Endurance of up to 12 million mechanical and 2 million electrical operations
- Mountable on 35 mm DIN rail or mounting plate
- Removable front cover for visual inspection of arc chambers and contacts
- Complies with IEC 60947-4-1 standard for mirror contacts
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
- High endurance reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand's official warranty policy for details.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
