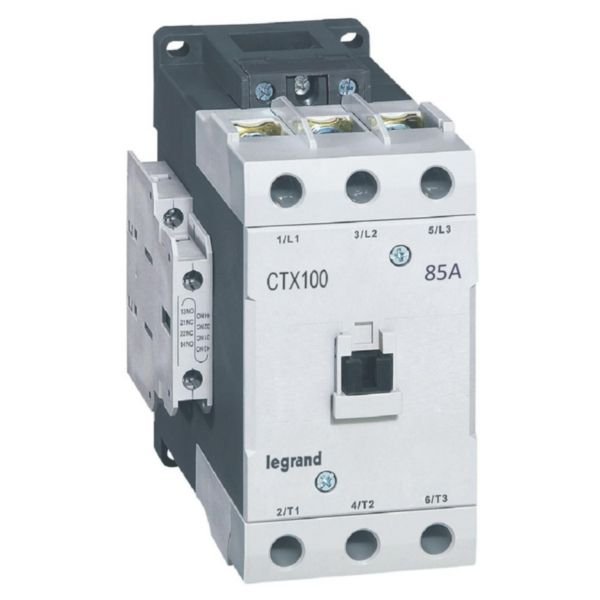

3-Pole Contactor CTX³ | 65-85A | 230V AC Actuation | Screw Terminals | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416206
$507.90 List price: $632.90
+ −
30 Days Return Delivery Options
The 3-Pole Contactor CTX³ is designed for reliable motor control, rated for 65-85A and 230V AC actuation. Ideal for industrial applications, it features a compact modular design with screw terminals for easy installation. With a high endurance of up to 12 million mechanical operations, this contactor ensures long-lasting performance and compliance with electrical standards.

Product Name/Title: 3-Pole Contactor CTX³ | 65-85A | 230V AC Actuation | Screw Terminals | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416206

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, 85A AC contactor, modular motor contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 135 A
  • Rated operation current Ie at AC-3, 400 V: 85 A
  • Rated operation power at AC-3, 400 V: 45 kW
  • Rated operation current Ie at AC-4, 400 V: 62 A
  • Rated operation power at AC-4, 400 V: 30 kW
  • Number of auxiliary contacts NO: 2
  • Number of auxiliary contacts NC: 2
  • Type of electrical connection of main circuit: Cable clamp
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • Rated 85A (AC-3) for switching 3-phase motors up to 45 kW at 415V
  • Rated operation current 135A (AC-1) for resistive loads
  • 2NO + 2NC auxiliary contacts with mirror contact NC according to IEC 60947-4-1
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Compact modular design for rail or mounting plate installation
  • Coil supply possible on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Screw terminals for power (2 x 10mm² to 50mm²) and coil/auxiliary circuits
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor control and protection
  • Tertiary sector electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with eco-friendly processes and complies with substance-restriction requirements
  • High endurance reduces replacement frequency and waste
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
