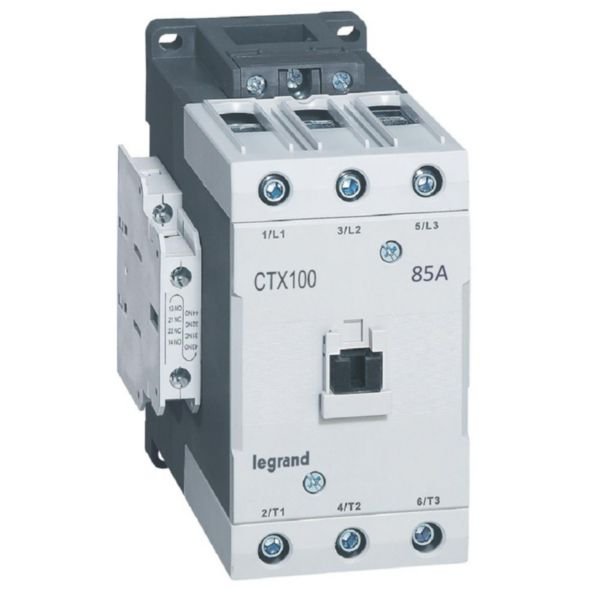

3-Pole Contactor CTX³ | 65-85A | 415V AC Switching | 2NO+2NC Terminals | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416219
$533.40 List price: $664.70
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for reliable motor control, rated for 65-85A and capable of switching 3-phase motors up to 45 kW at 415V. With a modular design and 2NO+2NC auxiliary contacts, it’s perfect for industrial applications, ensuring compliance with IEC standards and offering durability with up to 12 million mechanical operations.

Product Name/Title: 3-Pole Contactor CTX³ | 65-85A | 415V AC Switching | 2NO+2NC Terminals | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416219

Alternatively Known As: 3-pole motor contactor, 85A contactor, Legrand CTX3 contactor, industrial motor switch, AC motor contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Type of electrical connection: Screw connection
  • Rated operation current Ie at AC-1, 400 V: 135 A
  • Rated operation current Ie at AC-3, 400 V: 85 A
  • Rated operation power at AC-3, 400 V: 45 kW
  • Rated operation current Ie at AC-4, 400 V: 62 A
  • Rated operation power at AC-4, 400 V: 30 kW
  • Number of auxiliary contacts NO: 2
  • Number of auxiliary contacts NC: 2
  • Suitable for distribution board mounting
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • Rated current 85A (AC-3) for switching 3-phase motors up to 45 kW at 415V
  • Rated current 135A (AC-1) for resistive loads
  • 2NO + 2NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Modular design with 35mm rail mount and screw connection terminals
  • Coil supply possible on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Complies with IEC 60947-4-1 standard
  • Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and safety regulations.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance to reduce hazardous materials
  • Manufactured through an environmentally conscious process
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
