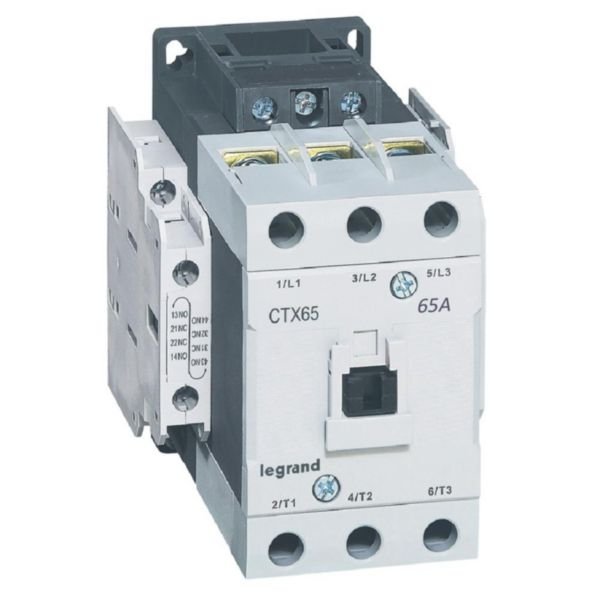

3-Pole Contactor CTX³ | 65A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416166
$375.00 List price: $467.30
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for reliable motor control, featuring a 65A AC-3 rating and screw terminals for easy installation. Ideal for industrial and tertiary applications, it supports 3-phase motors up to 22 kW and ensures compliance with IEC standards. With an endurance of up to 12 million mechanical operations, this modular contactor is built for longevity and efficiency.

Product Name/Title: 3-Pole Contactor CTX³ | 65A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416166

Alternatively Known As: 3-pole motor contactor, 65A contactor, modular contactor, Legrand CTX3 contactor, industrial motor contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Rated operation current Ie at AC-1, 400 V: 100 A
  • Rated operation current Ie at AC-3, 400 V: 65 A
  • Rated operation power at AC-3, 400 V: 30 kW
  • Rated operation current Ie at AC-4, 400 V: 47 A
  • Rated operation power at AC-4, 400 V: 22 kW
  • Number of auxiliary contacts: 2 normally open (NO) + 2 normally closed (NC)
  • Number of main contacts: 3 normally open (NO)
  • Type of electrical connection: Cable clamp screw terminals
  • Endurance: 12 million mechanical operations, 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.5 kg
Key Features
  • 3-pole contactor with 65A AC-3 rating for 3-phase motors
  • Rated for 22 kW at 415V and 100A AC-1 resistive loads
  • Equipped with 2NO + 2NC auxiliary contacts
  • Screw terminals for power (2 x 10mm² to 35mm²) and coil wiring
  • DIN rail mountable (35 mm top hat rail IEC 60715) and mounting plate compatible
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Coil supply can be connected from top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Complies with IEC 60947-4-1 standard
  • Designed with environmentally conscious processes
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 22 kW (415V)
  • Use in motor control and protection systems
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and control gear - Contactors and motor-starters
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured using environmentally conscious processes
Warranty Information

Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
