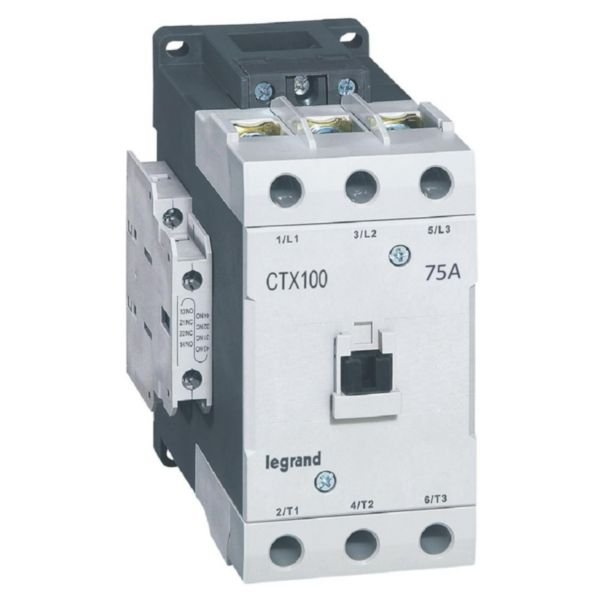

3-Pole Contactor CTX³ | 75A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
The 3-Pole Contactor CTX³ is designed for reliable motor control, featuring a robust 75A AC-3 rating and screw terminals for easy installation. Ideal for industrial and tertiary applications, it supports switching of 3-phase motors up to 37 kW at 415V, ensuring high performance and durability with an endurance of up to 12 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor CTX³ | 75A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416186
Alternatively Known As: 3-pole motor contactor, 75A contactor, Legrand CTX3 contactor, modular motor contactor, screw terminal contactor
Technical Specifications
- Rated operation current AC-3 (400V): 75A
- Rated operation power AC-3 (400V): 37 kW
- Rated operation current AC-1 (400V): 110A
- Rated operation current AC-4 (400V): 52A
- Rated operation power AC-4 (400V): 25 kW
- Auxiliary contacts: 2NO + 2NC
- Control supply voltage AC 50/60 Hz: 195.5-253 V
- Electrical connection: Screw terminals for power (2 x 10mm² to 35mm²), coil (0.75mm² to 2.5mm²), auxiliary circuit (0.75mm² to 2.5mm²)
- Mounting: 35mm DIN rail or mounting plate
- Mechanical operations endurance: 12 million
- Electrical operations endurance: 2 million
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole contactor with 75A AC-3 rating
- Rated for switching 3-phase motors up to 37 kW at 415V
- 110A rating for resistive loads (AC-1)
- 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
- Endurance of up to 12 million mechanical and 2 million electrical operations
- Mounts on 35mm DIN rail or mounting plate
- Coil supply can be connected from top or bottom
- Removable front cover for visual inspection of arc chambers and contacts
- Complies with IEC 60947-4-1 standard
- Screw terminals for power and coil connections
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 37 kW (415V)
- Use in motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 60947-4-1 (equivalent IEC 60947-4-1) for contactors and motor starters
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
