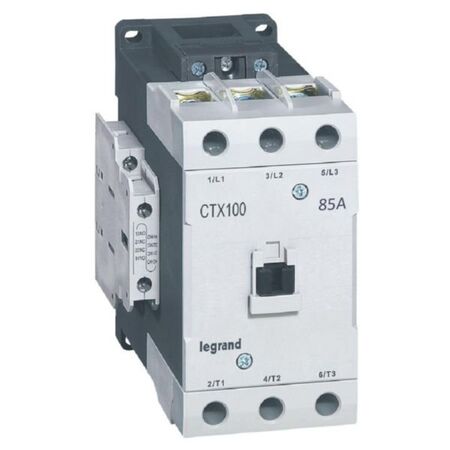

3-Pole Contactor CTX³ | 85A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Voltage Actuation | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416201
$769.90 List price: $959.40
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ is designed for industrial motor control, featuring an 85A AC-3 rating and 2 normally open plus 2 normally closed auxiliary contacts. With DC voltage actuation between 20.4-26.4V, this contactor ensures reliable operation for switching inductive and non-inductive loads, making it ideal for various electrical installations.

Product Name/Title: 3-Pole Contactor CTX³ | 85A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Voltage Actuation | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416201

Alternatively Known As: 3-pole motor contactor, 85A contactor, DC coil contactor, Legrand motor starter, industrial contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 85 A
  • Rated operation current Ie at AC-1, 400 V: 135 A
  • Rated operation power at AC-3, 400 V: 45 kW
  • Rated operation current Ie at AC-4, 400 V: 62 A
  • Rated operation power at AC-4, 400 V: 30 kW
  • Number of main contacts: 3 normally open
  • Number of auxiliary contacts: 2 normally open + 2 normally closed
  • Rated control supply voltage DC: 20.4-26.4 V
  • Type of electrical connection: Cable clamp
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 3-pole contactor with 85A AC-3 rating and 135A AC-1 rating
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • DC coil voltage actuation (20.4-26.4 V DC)
  • Compact and modular design for easy installation
  • Screw terminals supporting power cables from 2 x 10mm² to 50mm²
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Removable front cover for visual inspection of arc chambers and contacts
  • Coil supply possible from top or bottom side
  • Suitable for mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 45 kW at 415V
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process complying with substance-restriction requirements
  • Long operational life reduces waste and replacement frequency
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
