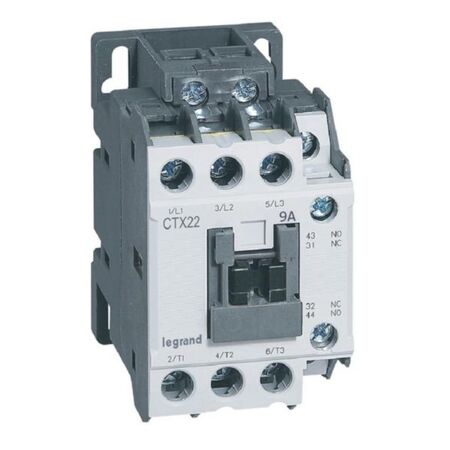

3-Pole Contactor CTX³ 9A AC-3 Rating 1NO+1NC Auxiliary Contacts Legrand

BRAND: Legrand
SKU: 416084
$72.90 List price: $90.90
1 EA ($72.90 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The 3-pole contactor CTX³ with a 9A AC-3 rating is perfect for controlling 3-phase motors up to 4 kW.
Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Rated operation current Ie at AC-1, 400 V: 25 A
  • Rated operation power at AC-4, 400 V: 2.2 kW
  • Number of main contacts: 3 normally open
  • Number of auxiliary contacts: 1 NO + 1 NC
  • Rated control supply voltage AC 50/60 Hz: 93.5-121 V
  • Type of electrical connection: Cable clamp
  • Mechanical operations endurance: 15 million
  • Electrical operations endurance: 2.5 million
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 9A AC-3 rating for 3-phase motors up to 4 kW
  • 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts
  • Compact modular design for mounting on 35mm DIN rail or mounting plate
  • Screw terminals for power and coil connections
  • Endurance of up to 15 million mechanical and 2.5 million electrical operations
  • Coil supply can be connected on top or bottom side
  • NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
  • Suitable for distribution boards
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 4 kW (415V)
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.

LE07229AB (LE07229AB.pdf, 2,118 Kb) [Download]

F01989FR-06 (F01989FR-06.pdf, 6,661 Kb) [Download]

F01989EN-06 (F01989EN-06.pdf, 7,541 Kb) [Download]

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0282 (ex223001_0282.pdf, 89 Kb) [Download]

ex223001_0292-0293 (ex223001_0292-0293.pdf, 607 Kb) [Download]

ex223001_0290-0291 (ex223001_0290-0291.pdf, 397 Kb) [Download]

ex223001_0288-0289 (ex223001_0288-0289.pdf, 95 Kb) [Download]

LGRP-00209-V01.01-EN (LGRP-00209-V01.01-EN.pdf, 712 Kb) [Download]
