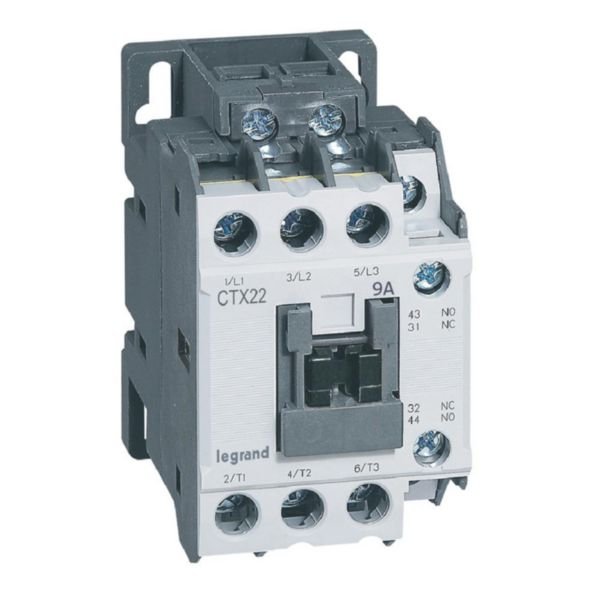

3-Pole Contactor CTX³ | 9A AC-3 Rating | 1NO+1NC Contacts | Screw Terminals | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416089
$72.90 List price: $90.90
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ with a 9A AC-3 rating is perfect for industrial and tertiary motor control applications. Featuring 1 normally open and 1 normally closed auxiliary contact, along with screw terminals for easy installation, this contactor ensures reliable performance for switching inductive and non-inductive loads. Built for durability, it offers an endurance of up to 15 million mechanical operations, making it a dependable choice for motor starters.

Product Name/Title: 3-Pole Contactor CTX³ | 9A AC-3 Rating | 1NO+1NC Contacts | Screw Terminals | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416089

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, 9A AC-3 contactor, industrial motor starter contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Rated operation current Ie at AC-1, 400 V: 25 A
  • Rated operation power at AC-4, 400 V: 2.2 kW
  • Rated operation current Ie at AC-4, 400 V: 6 A
  • Number of main contacts: 3 normally open
  • Number of auxiliary contacts: 1 normally open + 1 normally closed
  • Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
  • Electrical connection type: Screw terminals (cable clamp)
  • Suitable for distribution board installation
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: 15 million mechanical operations, 2.5 million electrical operations
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 9A AC-3 rating
  • 1NO + 1NC auxiliary contacts factory assembled
  • Screw terminals for power and coil connections
  • Modular design suitable for 35 mm top hat mounting rail
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Coil supply possible on top or bottom side
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor starters for 3-phase motors up to 4 kW (415V)
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured through an environmentally conscious process
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
