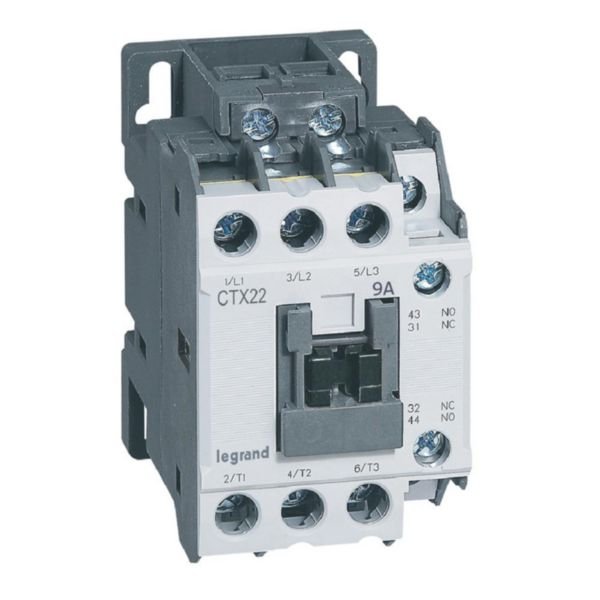

3-Pole Contactor CTX³ | 9A AC-3 Rating | Screw Terminals | Modular Design | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416086
$72.90 List price: $90.90
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ with a 9A AC-3 rating is perfect for motor control and protection in industrial applications. Featuring screw terminals for easy installation and a compact modular design, it ensures reliable operation with an endurance of up to 15 million mechanical operations. Ideal for 3-phase motors up to 4 kW, this contactor is built for efficiency and compliance with electrical standards.

Product Name/Title: 3-Pole Contactor CTX³ | 9A AC-3 Rating | Screw Terminals | Modular Design | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416086

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, modular contactor 9A, screw terminal contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Rated operation current Ie at AC-1, 400 V: 25 A
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Rated operation current Ie at AC-4, 400 V: 6 A
  • Rated operation power at AC-4, 400 V: 2.2 kW
  • Number of main contacts: 3 normally open
  • Number of auxiliary contacts: 1 normally open + 1 normally closed
  • Type of electrical connection: Screw terminals (cable clamp)
  • Endurance: 15 million mechanical operations, 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 9A AC-3 rating
  • Rated operation power of 4 kW at AC-3, 400 V
  • 1NO + 1NC auxiliary contacts, factory assembled
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 15 million mechanical operations and 2.5 million electrical operations
  • Can be mounted on 35 mm DIN rail or mounting plate
  • Coil supply possible on top or bottom side
  • Compact modular design to optimize cabinet space
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 4 kW (415V)
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
