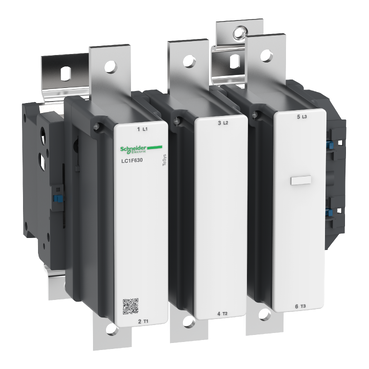

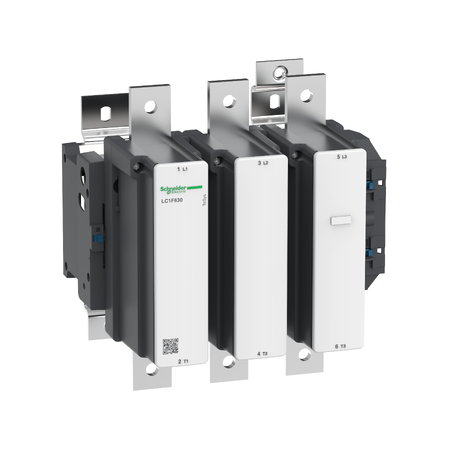

3-Pole Contactor TeSys LC1F 630A | 415V AC Coil | Robust Design | by Clipsal
The 3-Pole Contactor TeSys LC1F 630A is engineered for demanding industrial applications, featuring a 415V AC coil voltage and a robust design for reliable performance. Ideal for motor control and heavy-duty cycles, this contactor supports efficient energy management and is perfect for manufacturing plants, HVAC systems, and large commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor TeSys LC1F 630A | 415V AC Coil | Robust Design | by Clipsal
Brand: Clipsal
SKU: SCHLC1F630N7
Alternatively Known As: LC1F630N7, TeSys F Contactor, 3 Pole Contactor 630A, Schneider Electric LC1F630N7, Industrial Power Contactor
Technical Specifications
- Type: 3-pole contactor
- Series: TeSys F
- Rated operational current (AC-3): 630A at 440V
- Coil voltage: 415V AC 50/60Hz
- Contact configuration: 3NO (normally open)
- Utilization category: AC-3
- Conforms to IEC 60947-4-1
- Mechanical durability: up to 5 million operations
- Electrical durability: up to 1 million operations (AC-3)
- Mounting: Panel mounting
- Dimensions (H x L x W): 320mm x 210mm x 210mm
- Weight: 15 kg
Key Features
- High power 3-pole contactor for demanding industrial applications
- AC-3 utilization category up to 440V, 630A
- 415V AC coil voltage
- Robust and reliable TeSys F series design
- 3 normally open (3NO) contacts
- Suitable for frequent switching and heavy-duty cycles
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Switching of electrical circuits in manufacturing plants
- HVAC systems
- Pumping stations
- Large commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management in industrial systems
- Supports reliable operation, reducing downtime and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1F630N7 3 Pole Contactor is available for immediate purchase. Ideal for industrial and commercial motor control and high-power switching applications.
