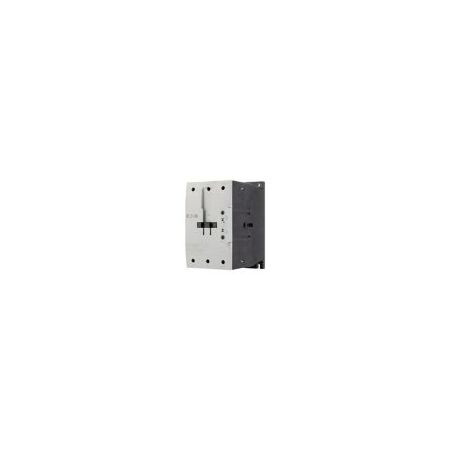

3-Pole DC Contactor | 150A Rated Current | 75kW Power | -25°C to 60°C by Eaton
This 3-pole DC contactor is rated for 150A and 75kW, making it ideal for motor control in industrial automation systems. Built for efficiency and durability, it operates in a wide temperature range from -25°C to 60°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole DC Contactor | 150A Rated Current | 75kW Power | -25°C to 60°C by Eaton
Brand: Eaton
SKU: Y7-239591
Alternatively Known As: Eaton DILM150 Contactor, Moeller DILM150, 3-Pole Motor Contactor, DC Coil Contactor 24V, Industrial Motor Contactor
Technical Specifications
- Number of poles: 3
- Rated operational power at AC-3, 380/400 V, 50 Hz: 75 kW
- Rated control supply voltage (Us) at DC: 24 - 27 V
- Rated operational current (Ie) at AC-3, 380/400 V: 150 A
- Rated breaking capacity at 380/400 V: 1500 A
- Mechanical lifespan: 10,000,000 operations (DC operated)
- Operating frequency: 3600 mechanical operations/hour (DC operated)
- Protection: Finger and back-of-hand proof (EN 50274)
- Shock resistance: 7 g to 10 g per IEC/EN 60068-2-27
- Ambient operating temperature: -25 °C to 60 °C
- Terminal capacity: Main cables up to 95 mm², control cables up to 4 mm²
- Connection type: Screw terminals
- Power consumption (pick-up) at DC: 149 W
- Power consumption (sealing) at DC: 1.9 W
- Rated insulation voltage (Ui): 690 V
- Duty factor: 100%
- Dimensions (H x L x W): 170mm x 160mm x 90mm
- Weight: 2.25 kg
Key Features
- Three-pole contactor suitable for DC operation
- Rated operational power up to 75 kW at 380/400 V AC
- Suppression circuit integrated in actuating electronics
- Finger and back-of-hand protection according to EN 50274
- High mechanical lifespan of 10,000,000 operations (DC operated)
- Rated breaking capacity up to 1500 A at 220-500 V
- Shock resistance compliant with IEC/EN 60068-2-27
- Wide ambient operating temperature range from -25 °C to 60 °C
- Screw terminal connections for main and control cables
- Rated control supply voltage 24-27 V DC (RDC 24)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and correct integration into motor control systems.
Applications
- Motor control and switching applications
- Industrial automation systems
- Contactors for motors including IE3 efficiency class motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Supports motors with IE3 efficiency class for lower environmental impact
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller DILM150(RDC24) contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
