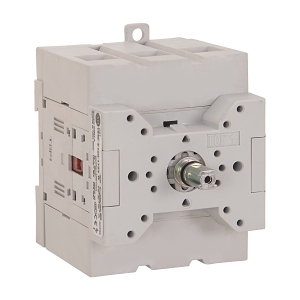

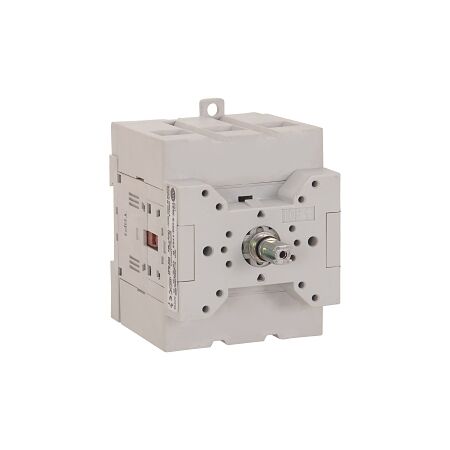

Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 100A

3 Pole Disconnect Switch | 100A | 690V Rated | IP20 Protection by NHP

BRAND: NHP

SKU: 194EE1001753

$341.00 List price: $452.80

+ −

30 Days Return Delivery Options

3 pole disconnect switch with 100A current and 690V voltage—ideal for industrial and commercial electrical systems. Built for reliable performance, with IP20 protection and front/door mount design.

Description
Attachments

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 100A

Brand: NHP

SKU: 194EE1001753

Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch

Technical Specifications

Max Rated Operation Voltage: 690 V
Rated Permanent Current: 100 A
Number of Poles: 3
Rated Operation Power at AC 3, 400 V: 37 kW
Rated Operation Power at AC 23, 400 V: 45 kW
Rated Short Time Withstand Current: 2500 kA
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Type of Electrical Connection: Screw connection
Rated Operating Voltage: 400-690 V
Conditioned Rated Short Circuit Current: 25 kA
Degree of Protection: IP20
Rated Surrounding Temperature: 60 °C
Storage Temperature: -40-80 °C
Dimensions (H x L x W): 90mm x 90mm x 72mm
Weight: 2.5 kg

Key Features

3 pole design with a rated permanent current of 100 A.
Rated operation voltage up to 690 V.
Built-in device fixed construction for reliable performance.
IP20 protection rating for front side.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Manufacturing facilities, machinery control
Commercial: Electrical distribution systems, maintenance services

Standards & Compliance

Complies with relevant Australian electrical safety standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

194EE1001753-AU-194E-Disconnect-Switch-3P-Datasheet.pdf (194EE1001753-AU-194E-Disconnect-Switch-3P-Datasheet.pdf, 259 Kb) [Download]
