3 Pole Disconnect Switch | 40A | 690V Rated | IP20 Protection by NHP
3 pole disconnect switch with 40A current and 690V operation—ideal for industrial and commercial installations. Built for safety and durability, with IP20 protection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

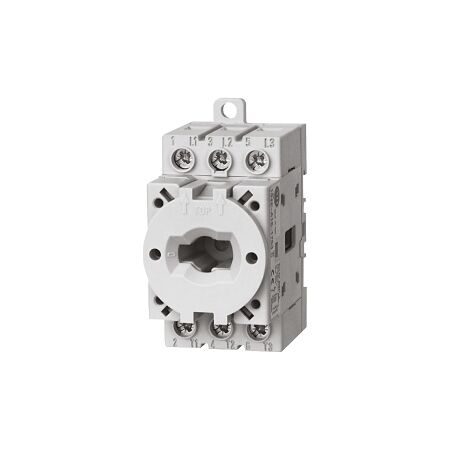

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 40A
Brand: NHP
SKU: 194EA401753
Alternatively Known As: 194E Disconnect Switch, 3 Pole Switch Disconnector, Allen-Bradley Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 40 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power at AC 3,400 V: 15 kW
- Rated Operation Power at AC 23,400 V: 18.5 kW
- Rated Short Time Withstand Current: 1300 kA
- Rated Insulation Voltage: 600 V
- Rated Impulse Withstand Voltage: 8 kV
- Frequency: 60 Hz
- Degree of Protection: IP20
- Dimensions (H x L x W): 180mm x 105mm x 125mm
- Weight: 1.5 kg
Key Features
- 3 Pole design with a rated permanent current of 40A.
- Rated operation voltage up to 690V.
- IP20 protection degree for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in manufacturing and processing facilities
- Commercial: Ideal for commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail Mount 3 Pole 40A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
