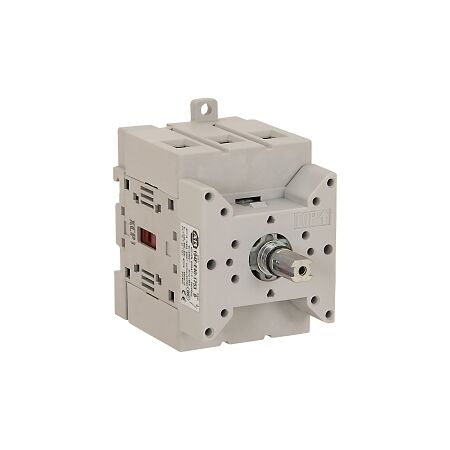

Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 63A

3 Pole Disconnect Switch 63A | Front/Door Mount | IP20 Protection by NHP

BRAND: NHP

SKU: 194EE631753

$164.90 List price: $219.00

+ −

30 Days Return Delivery Options

3 pole disconnect switch with 63A rated current and front/door mount—ideal for industrial and commercial electrical installations. Built for reliability, with IP20 protection and screw connection for secure setup.

Description
Attachments

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 63A

Brand: NHP

SKU: 194EE631753

Alternatively Known As: 194E Load Break Switch, 3 Pole Disconnect Switch, NHP Disconnect Switch

Technical Specifications

Max Rated Operation Voltage: 690 V
Rated Permanent Current: 63 A
Rated Operation Power at AC 3, 400 V: 18.5 kW
Rated Operation Power at AC 23, 400 V: 22 kW
Rated Short Time Withstand Current: 1300 kA
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Type of Electrical Connection: Screw connection
Rated Operating Voltage: 400-690 V
Conditioned Rated Short Circuit Current: 15 kA
Degree of Protection: IP20
Rated Surrounding Temperature Without Derating: 60 °C
Storage Temperature: -40-80 °C
Dimensions (H x L x W): 72mm x 74mm x 54mm
Weight: 1.5 kg

Key Features

3 Pole design with a rated current of 63A.
Built-in device fixed built-in technique for enhanced reliability.
IP20 protection rating for front side.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Suitable for use in manufacturing and processing facilities
Commercial: Ideal for commercial electrical installations

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Durable construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical applications.

194EE631753-AU-194E-Load-Break-Switch-3P-Datasheet.pdf (194EE631753-AU-194E-Load-Break-Switch-3P-Datasheet.pdf, 275 Kb) [Download]
