3 Pole Disconnect Switch | 80A | 690V | IP20 Protection by NHP
3 pole disconnect switch with 80A current and 690V operation—ideal for industrial and commercial power distribution. Built for reliable circuit disconnection, with IP20 protection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

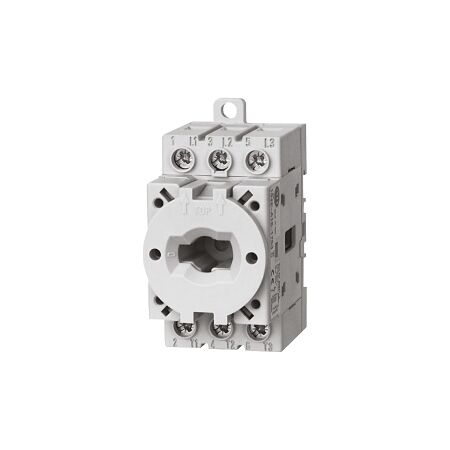

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 80A
Brand: NHP
SKU: 194EA801753
Alternatively Known As: 194E Disconnect Switch, 3 Pole Disconnect Switch, NHP Disconnect Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 80 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power at AC 3,400 V: 30 kW
- Rated Operation Power at AC 23,400 V: 37 kW
- Rated Short Time Withstand Current: 2500 kA
- Rated Insulation Voltage: 600 V
- Rated Impulse Withstand Voltage: 8 kV
- Frequency: 60 Hz
- Degree of Protection: IP20
- Dimensions (H x L x W): 230mm x 120mm x 175mm
- Weight: 2.5 kg
Key Features
- 3 Pole design with a rated permanent current of 80 A.
- Rated operation voltage up to 690 V.
- IP20 protection degree for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Power distribution systems
- General: Any application requiring reliable disconnection of electrical circuits
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical disconnection.
