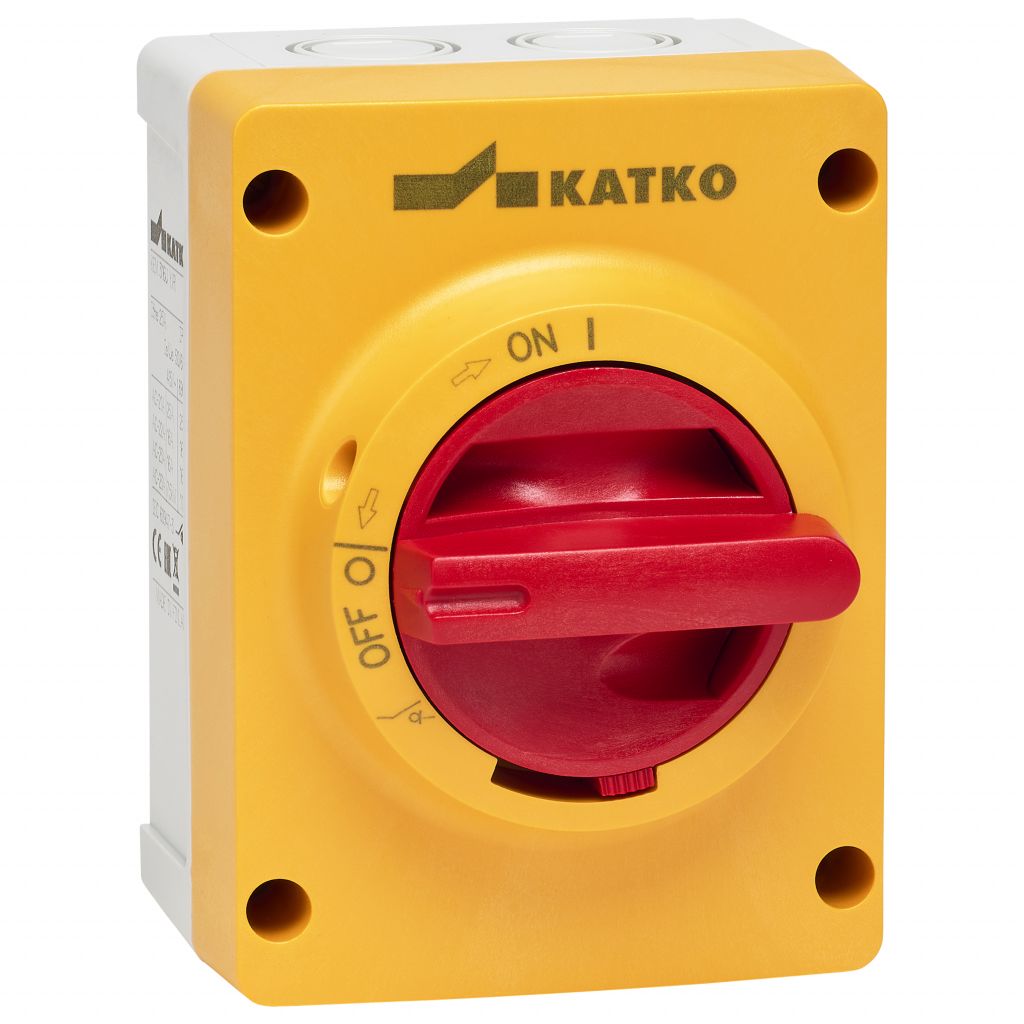

3 Pole Enclosed Isolators | IP66 Rated Polycarbonate | Load Break Switch | Yellow/Red | by Katko
3 Pole Enclosed Isolators are designed for reliable industrial electrical isolation, featuring an IP66 rated polycarbonate enclosure for superior dust and water protection. Ideal for commercial and industrial applications, these isolators ensure safety with padlockable operation and excellent insulating properties, making them perfect for switchgear panels and machinery safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Enclosed Isolators | IP66 Rated Polycarbonate | Load Break Switch | Yellow/Red | by Katko
Brand: Katko
SKU: KEM325YRM2
Alternatively Known As: 3 Pole Load Break Switch, 3 Pole Electrical Isolator, Industrial Enclosed Isolator Switch
Technical Specifications
- Rated Current AC-21 400/415 V: 40 A
- Rated Current AC-21 690 V: 40 A
- Rated Current AC-22 400/415 V: 25 A
- Rated Current AC-22 690 V: 25 A
- Rated Current AC-23 400/415 V: 25 A / 11 kW
- Rated Current AC-23 690 V: 25 A / 22 kW
- Cable Area to Switch Terminal (Cu only): 1.5-16 mm²
- Enclosure Type: Polycarbonate M2
- IP Rating: IP66
- Number of Poles: 3
- Operation: Front-operated
- Switch Type: Load Break Switch
- Color: Yellow / Red
- Dimensions (H x L x W): 180mm x 90mm x 120mm
- Weight: 0.4 kg
Key Features
- IP66 rated polycarbonate enclosure for dust and water protection
- Self-extinguishing material for enhanced safety
- Wide operating temperature range
- Padlockable with 3 locks for secure isolation
- Door interlock with defeat mechanism
- Excellent insulating properties
- Good UV resistance and chemical resistance
- Tested according to IEC 60947-3 standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial electrical isolation
- Electrical switchgear panels
- Machinery and equipment safety isolation
- Commercial and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polycarbonate enclosure reduces need for frequent replacements
- High resistance to UV and chemicals extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Katko warranty terms for details.
Available Now
The Katko 3 Pole Enclosed Isolators KEM325YRM2 is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
