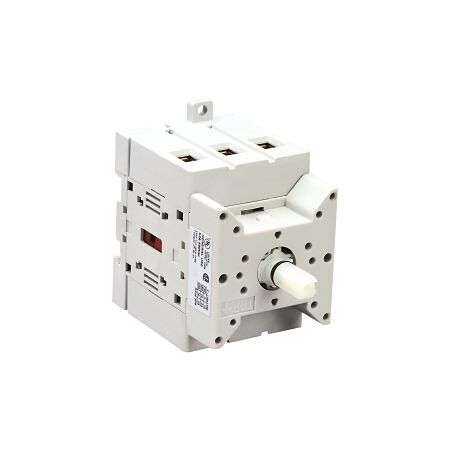

3 Pole Load Break Switch | 16A 690V | Panel Mount | IP20 by NHP
3 pole load break switch with 16A operation at 690V and panel mount design—ideal for industrial and commercial applications. Built for reliable switching, with IP20 protection and easy front mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 16A
Brand: NHP
SKU: LE7161753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 5.5 kW
- Rated operation current IE at AC 21A 690 V: 16 A
- Rated operation current IE at AC 1 690 V: 16 A
- Thermal current enclosed: 20 A
- Thermal current open: 25 A
- Mechanical life service cycles: 200,000 cycles
- Operating temperature: -25 to 60 °C
- Wire conductor size for rigid cable: 1.5-6 mm²
- Wire conductor size for flexible cable: 1-10 mm²
- Dimensions (H x L x W): 63mm x 51mm x 36mm
- Weight: 0.5 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 16A operation at 690V.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 16A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
