3 Pole Load Break Switch | 16A | IP20 Rated | DIN Rail by NHP
3 pole load break switch with 16A rating and IP20 protection—ideal for industrial and commercial electrical systems. Built for reliable load breaking, with DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

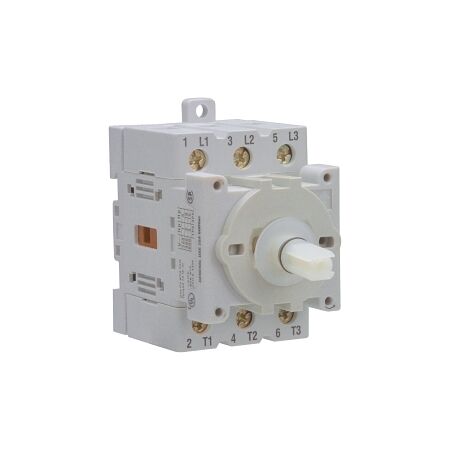

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 16A Base Mount
Brand: NHP
SKU: LA7161753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 5.5 kW
- Rated Operation Current IE at AC 21A 690 V: 16 A
- Rated Operation Current IE at AC 1 690 V: 16 A
- Ithe Thermal Current Enclosed: 20 A
- Ith Thermal Current Open: 25 A
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size Rigid Cable: 1.5-6 mm²
- Wire Conductor Size Flex Cable: 1-10 mm²
- Degree of Protection IP Front Side: IP20
- With Zero Off Position: Yes
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 55mm x 36mm
- Weight: 0.5 kg
Key Features
- 3-pole design for reliable load breaking.
- Rated for 16A operation with a robust mechanical life of 200,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load break applications in various electrical systems
- Commercial: Suitable for use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 16A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
