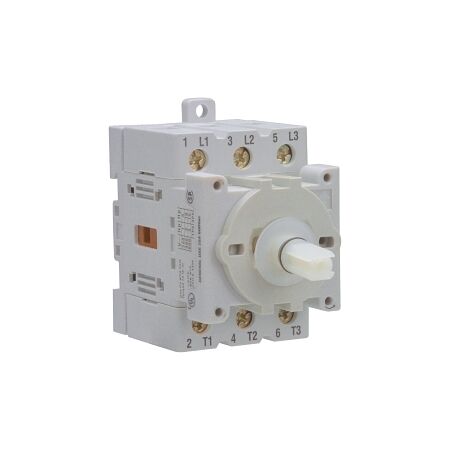

3 Pole Load Break Switch | 25A | DIN Rail Mount | IP20 by NHP
3 pole load break switch with 25A rating and DIN rail mount—ideal for industrial and commercial electrical systems. Built for reliable load breaking, with IP20 protection and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount
Brand: NHP
SKU: LA7251753
Alternatively Known As: L7 Load Break Switch, Off Load Switch, 3 Pole Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 7.5 kW
- Rated operation current at AC 21A 690V: 25 A
- Rated operation current at AC 1 690V: 25 A
- Thermal current (enclosed): 32 A
- Thermal current (open): 40 A
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 1.5-10 mm²
- Wire conductor size (flex cable): 1.5-16 mm²
- Degree of protection: IP20
- With zero off position: Yes
- Number of switch positions: 2
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 0.5 kg
Key Features
- 3 pole design for reliable load breaking.
- Rated for 25A operation with a mechanical life of 200,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load break applications in various electrical systems
- Commercial: Suitable for use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
