3 Pole Load Break Switch | 32A Operation | IP20 Rated | DIN Rail by NHP
3 pole load break switch with 32A operation and IP20 rating—ideal for industrial and commercial power distribution. Built for reliable load management, with durable DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

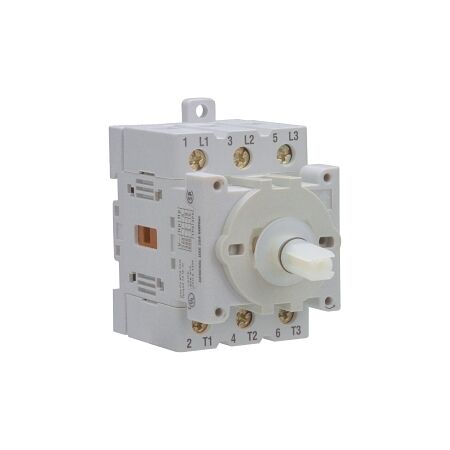

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 32A Base Mount
Brand: NHP
SKU: LA7321753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Rated operation power at AC 3, 400V: 11 kW
- Rated operation current at AC 21A 690V: 32 A
- Rated operation current at AC 1 690V: 32 A
- Thermal current enclosed: 40 A
- Thermal current open: 50 A
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size rigid cable: 1.5-10 mm²
- Wire conductor size flex cable: 1.5-16 mm²
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 1.0 kg
Key Features
- 3-pole design for effective load break switching.
- Rated for 32A operation, suitable for various applications.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load management in manufacturing and processing facilities
- Commercial: Power distribution in commercial buildings
- General: Any application requiring reliable load break switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 32A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable load break switching.
